Anti-roll bar - manual gearbox (page 2 of 2)

7. Remove 3 bolts securing gear linkage bracket to front beam and lower gear change linkage onto exhaust front pipe.

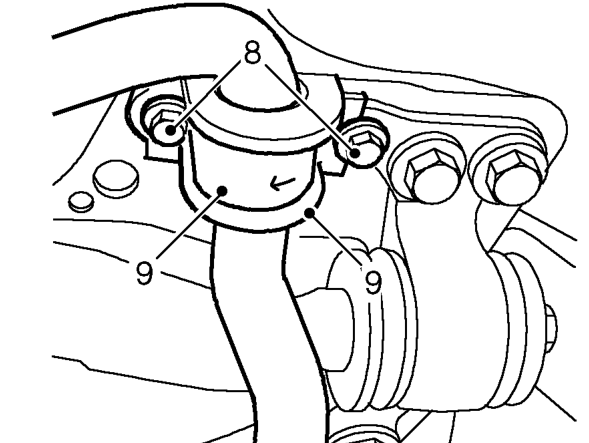

8. Remove 2 bolts securing each anti-roll bar bush clamp to front beam.
9. Remove clamps and bushes.
10. Manoeuvre anti-roll bar over gear change linkage and remove anti-roll bar.

Refit

1. Manoeuvre anti-roll bar over gear change linkage and engage ends over each link.
2. Smear bore of each bush with rubber grease.
3. Fit bushes to anti-roll bar, ensuring split faces forwards.

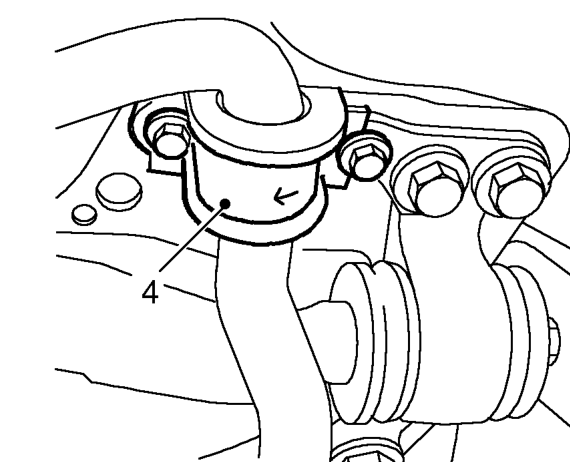

4. Fit clamps to bushes with ARROW facing to front.
5. Fit bolts, DO NOT tighten.
6. Raise gear change linkage, fit bolts and tighten to 24 Nm.
