COMPENSATOR ARM BUSHES

Service repair no - 64.35.64

Remove

  1. Remove compensator arm. See this section.
Compensator arm bushes – Remove compensator arm. See this section.

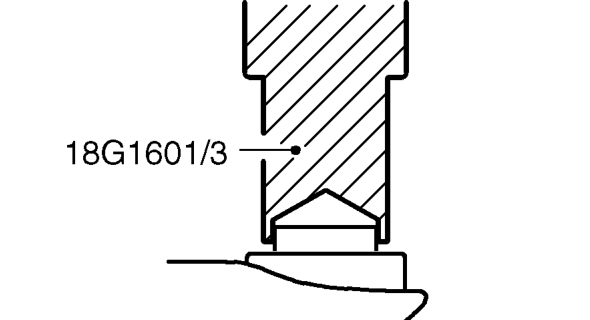

  1. Position arm on press, flange face UP on support tool 18G 1601/1 .
  2. Position tool 18G 1601/3 on bush and press out bush.
  3. Repeat operations to remove second bush.

Refit

Compensator arm bushes – Repeat operations to remove second bush.

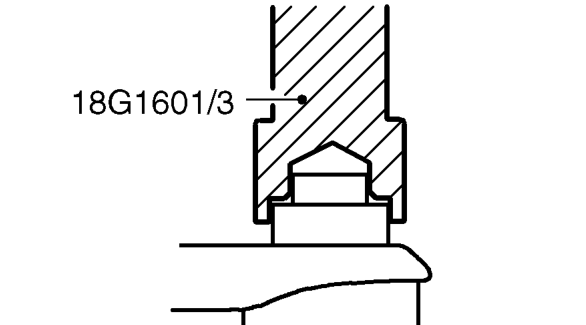

  1. Turn arm over and support on tool 18G 1601/1 .
  2. Position new bush and locate tool 18G 1601/3 over bush.
  3. Press bush into arm until tool contacts arm.
  4. Repeat operations to fit second bush.
  5. Fit compensator arm. See this section.
