SuspensionRear bush - front radius arm

Refit

Diagram

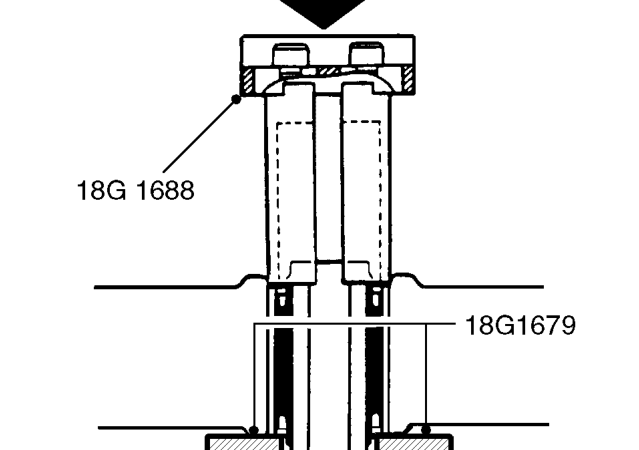

  1. Position arm to press with machined face facing down and tool 18G 1679 positioned to act as a stop when pressing bush into arm.
  2. Press bush into arm using tool 18G 1688 .
  3. Repeat operations for 2nd bush.
  4. Fit front lower arm assembly. See this section.

REAR BUSH - FRONT RADIUS ARM

Service repair no - 60.35.25

Remove

  1. Remove front lower arm assembly. See this section.

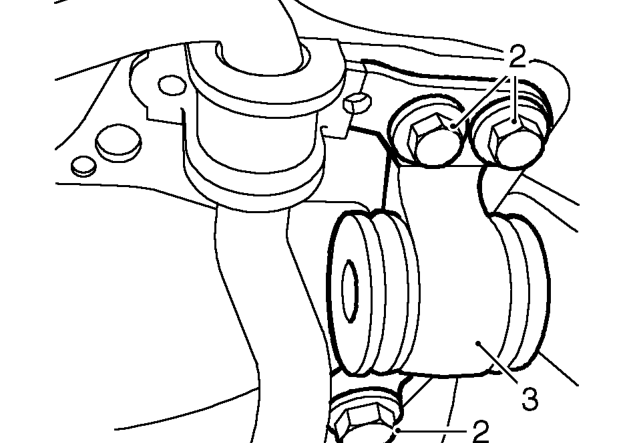

Rear bush - front radius arm – Remove front lower arm assembly. See this section.
  1. Remove 3 bolts securing bush to front beam.
  2. Remove bush.

Refit

  1. Position bush, fit but do not tighten bolts.

NOTE: Bolts are tightened after fitting front lower arm assembly.

  1. Fit front lower arm assembly. See this section.
