Rover 400 Workshop Manual (1995-2000)23 · Suspension
23 · Steering & suspension

Anti-roll bar - automatic gearbox

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Anti-roll bar - automatic gearbox
SuspensionAnti-roll bar - automatic gearbox · page 1 of 2
  1. Clean gear linkage ball joints and apply grease. See INFORMATION, Capacities, fluids and lubricants.
Clean gear linkage ball joints and apply grease. See INFORMATION, Capacities, fluids and l

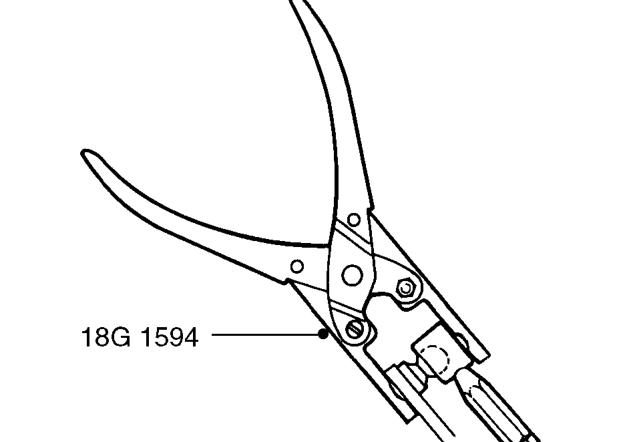

  1. Connect ball joints using tool 18G 1594 .
  2. Connect exhaust front pipe mounting rubber.
  3. Fit exhaust front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  4. Smear face of link bush cup washers with rubber grease.
  5. Fit link bushes and cup washers.
  6. Fit flange nuts and tighten to 22 Nm.
  7. Tighten anti-roll bar bracket bolts to 22 Nm.
  8. Remove stand(s) and lower vehicle.

ANTI-ROLL BAR - AUTOMATIC GEARBOX

Service repair no - 60.10.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

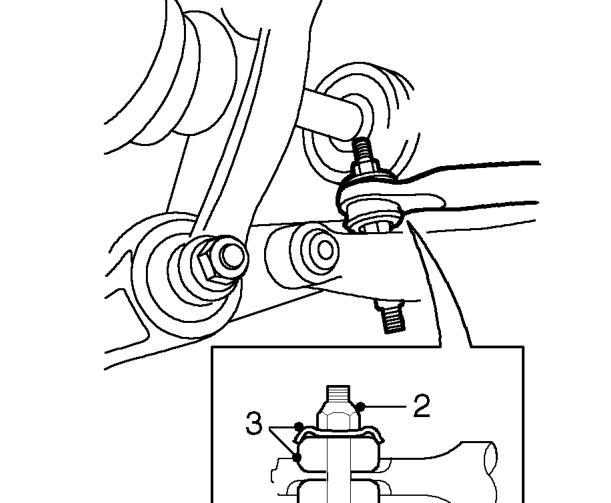

Anti-roll bar - automatic gearbox – Raise front of vehicle.
  1. Hold link against rotation and remove flange nut from top of each anti-roll bar link.
  2. Remove cup washers and bushes.
  3. Remove exhaust front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
