Anti-roll bar - automatic gearbox (page 2 of 2)

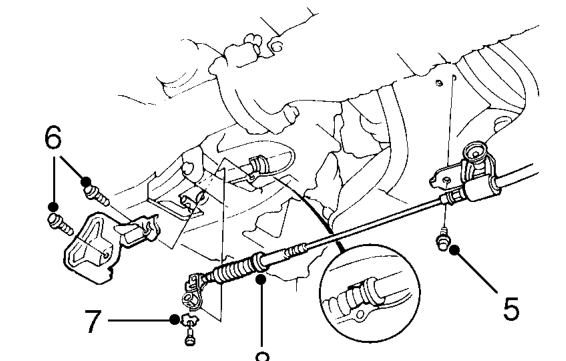

5. Remove bolt securing selector cable support bracket to front beam.
6. Remove 2 bolts securing gear selector cable cover to gearbox and remove cover.
7. Release lock washer and remove bolt securing selector cable to gearbox. Discard lockwasher.
8. Release selector cable from gearbox.

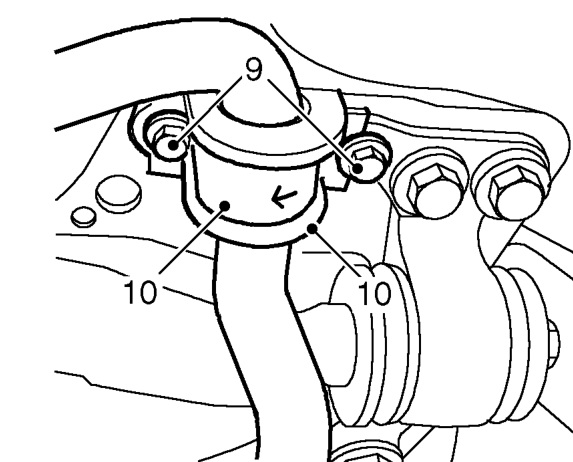

9. Remove 2 bolts securing each anti-roll bar bush clamp to front beam.
10. Remove clamps and bushes.
11. Manoeuvre anti-roll bar over gear change linkage and remove anti-roll bar.

Refit

1. Manoeuvre anti-roll bar over gear change linkage and engage ends over each link.
2. Smear bore of each bush with rubber grease.
3. Fit bushes to anti-roll bar, ensuring split faces forwards.

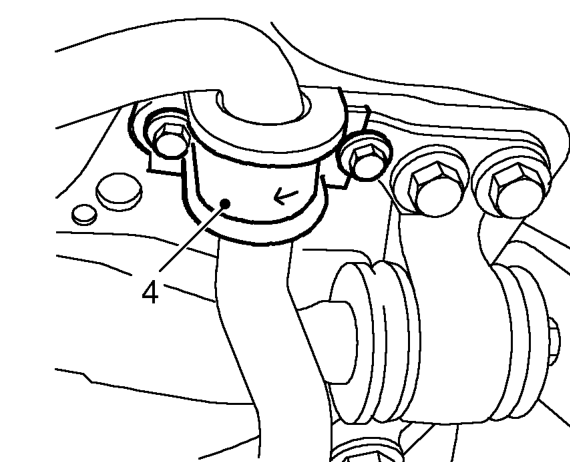

4. Fit clamps to bushes with ARROW facing to front.
5. Fit bolts, DO NOT tighten.
6. Connect selector cable to gearbox and using new lock washer, fit bolt and tighten to 14 Nm. Secure lockwasher.
7. Position selector cable cover, fit bolts and tighten to 22 Nm.
8. Fit exhaust front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
9. Smear face of link bush cup washers with rubber grease.
10. Fit link bushes and cup washers.
11. Fit flange nuts and tighten to 22 Nm.
12. Tighten anti-roll bar bracket bolts to 22 Nm.
13. Remove stand(s) and lower vehicle.
