Rear hub and bearing - drum brake with ABS (page 2 of 3)

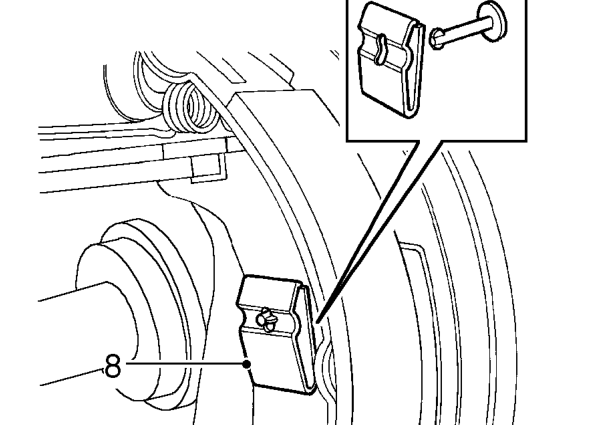

8. Remove 2 clips and 2 pins retaining brake shoes.

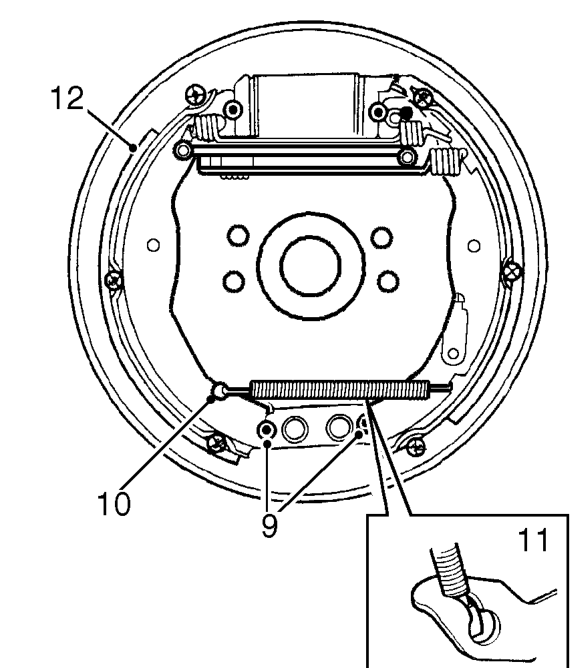

9. Ease one shoe out of retaining groove in abutment followed by other shoe.
10. Detach return spring from leading shoe end and remove spring.

NOTE: The forward shoe is the LEADING shoe, the TRAILING shoe has the handbrake lever attached to it.

11. Disconnect handbrake cable from brake lever.
12. Remove brake shoe assembly.

CAUTION: Ensure edges of brake shoes do not damage wheel cylinder dust covers.

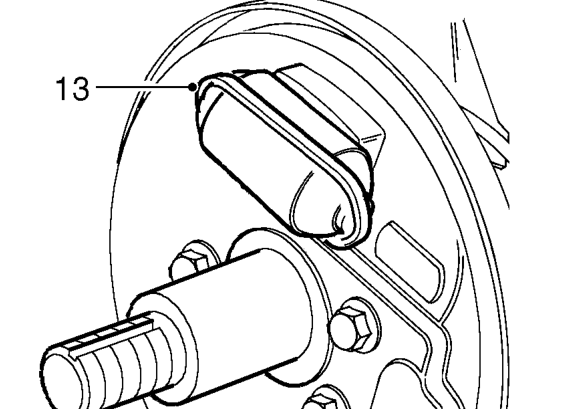

13. Fit an elastic band around wheel cylinder to retain pistons.
