Rover 400 Workshop Manual (1995-2000)23 · Suspension
23 · Steering & suspension

Front lower ball joint (page 3 of 4)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionFront lower ball joint · page 3 of 4
Diagram

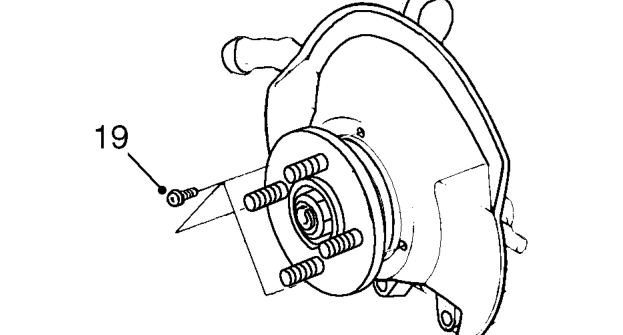

  1. Remove hub ring.
Remove hub ring.
  1. Remove 3 screws securing disc shield.
  2. Move shield for access to ball joint.

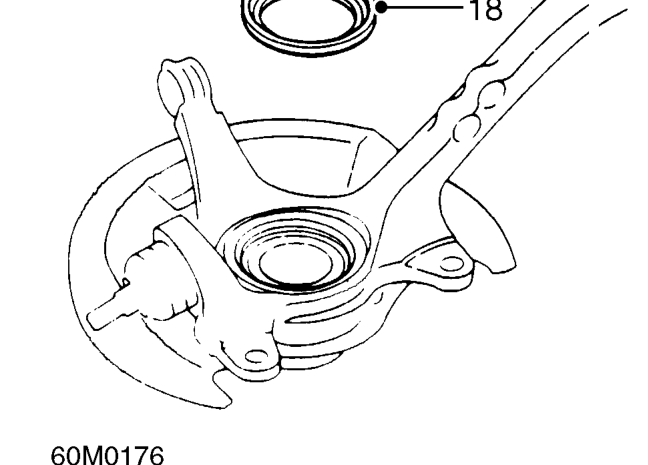

  3. Remove spring clip and remove boot.
  4. Remove circlip retaining ball joint.
Remove circlip retaining ball joint.

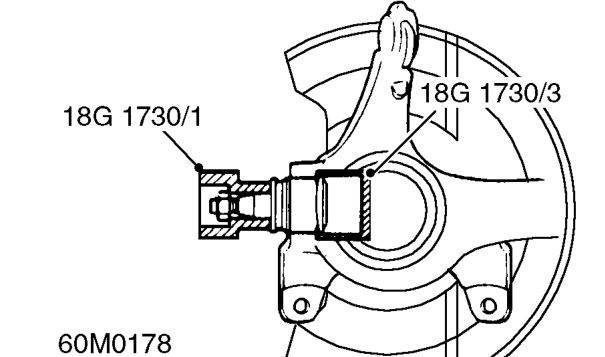

  1. Fit tool 18G 1730/1 over ball joint and fit nut to secure tool.
  2. Fit tool 18G 1730/3 to swivel hub.
  3. Position assembly in vice and use vice to press ball joint out of swivel hub.
  4. Open vice and remove swivel hub and tools from vice.
