Rover 400 Workshop Manual (1995-2000)23 · Suspension
23 · Steering & suspension

Front lower ball joint (page 2 of 4)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
SuspensionFront lower ball joint · page 2 of 4

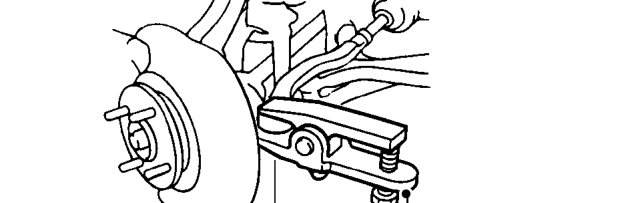

Diagram
  1. Remove split pin from steering arm ball joint nut and remove nut. Discard split pin.
  2. Break taper joint using 18G 1584 .

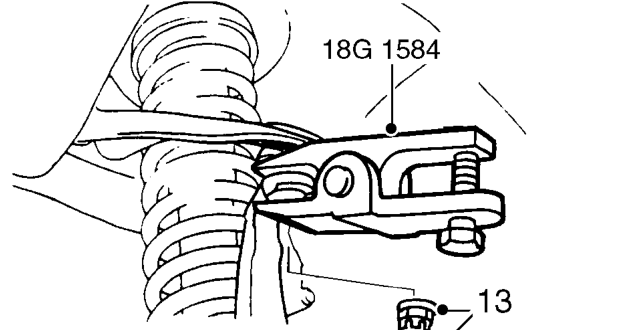

Break taper joint using 18G 1584 .
  1. Remove split pin from swivel hub upper ball joint nut and remove nut. Discard split pin.
  2. Break taper joint using tool 18G 1584 .

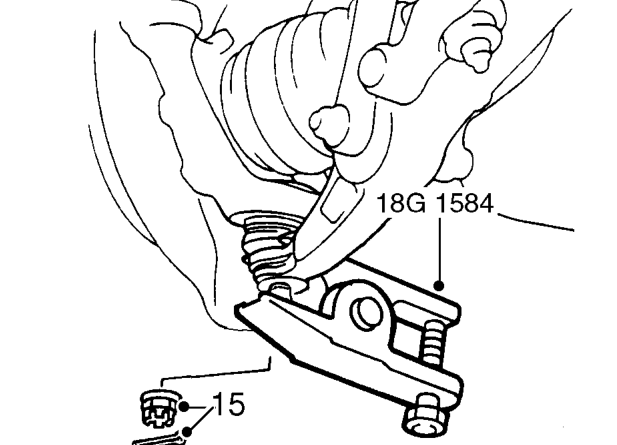

Break taper joint using tool 18G 1584 .
  1. Remove split pin from swivel hub lower ball joint nut and remove nut. Discard split pin.
  2. Break taper joint using tool 18G 1584 .
Break taper joint using tool 18G 1584 .

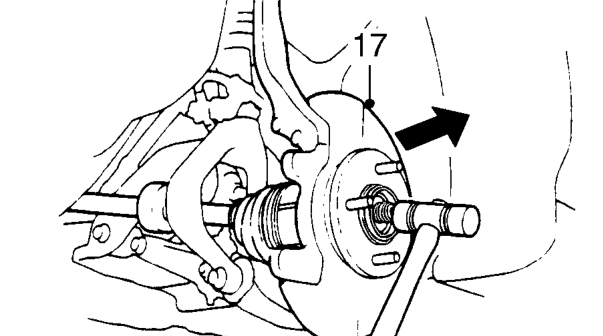

  1. Release and remove swivel hub.
