Rover 600 Repair Manual Supplement (1993-1999)06 · Cooling system - L Series
06 · Engine

Models with air conditioning only

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Models with air conditioning only
Cooling system - L SeriesModels with air conditioning only

Models with air conditioning only

  1. Fit and tighten nut securing air conditioning pipe to bonnet locking platform.
  2. Fit and tighten bolt securing air conditioning pipe to LH cooling fan.

All models

  1. Reposition harness and connect multiplugs to cooling fans.
  2. Connect Lucars to switches on radiator.
  3. Connect coolant top hose to radiator and tighten clip.
  4. Remove drain tin.
  5. Fit hose between intercooler and inlet manifold and secure with clips.
  6. Fit acoustic cover. See BODY, Exterior fittings.
  7. Top up engine coolant. See MAINTENANCE.

THERMOSTATIC SWITCH

Service repair no - 26.25.35

Remove

  1. Position drain tin to collect any coolant spillage.

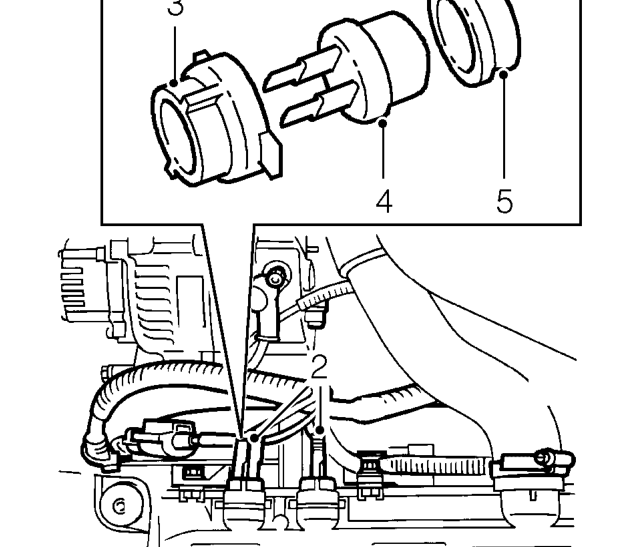

Thermostatic switch – Position drain tin to collect any coolant spillage.
  1. Disconnect Lucars from switch.
  2. Remove locking ring from switch.
  3. Remove switch from radiator.
  4. Remove rubber grommet from radiator.

Refit

  1. Fit rubber grommet to switch.
  2. Fit switch to radiator.
  3. Fit locking ring to switch.
  4. Connect Lucars to switch.
  5. Remove drain tin.
  6. Top up cooling system.
