Rover 600 Repair Manual Supplement (1993-1999)06 · Cooling system - L Series
06 · Engine

WARNING: Support on safety stands.

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › WARNING: Support on safety stands.
Cooling system - L SeriesWARNING: Support on safety stands.
Diagram

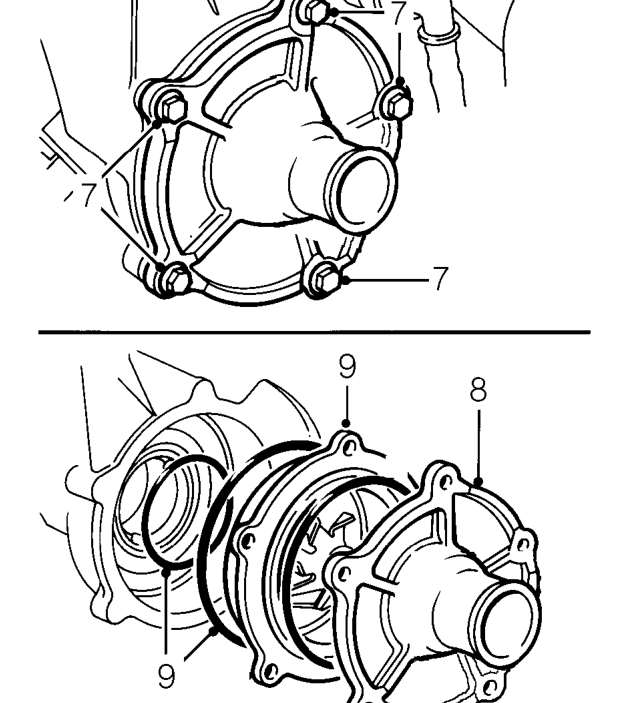

  1. Remove 5 bolts securing coolant pump cover to mounting.
  2. Remove coolant pump cover.
  3. Release coolant pump from mounting and discard 2 ’O’ rings.
  4. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front beam. See FRONT SUSPENSION, Repairs.
Warning: support on safety stands. – Remove front beam. See FRONT SUSPENSION, Repairs.

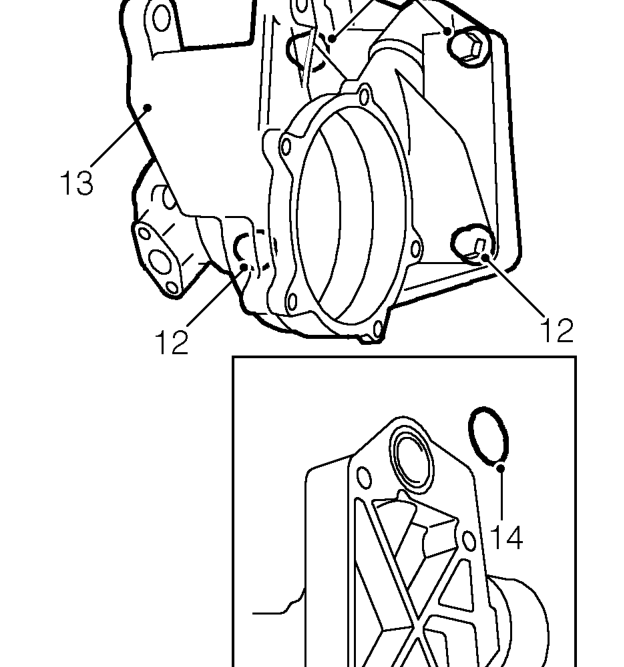

  1. Remove 4 bolts securing coolant pump mounting to block.
  2. Lower mounting from vehicle.
  3. Remove and discard ’O’ ring from mounting.
