Rover 600 Repair Manual Supplement (1993-1999)06 · Cooling system - L Series
06 · Engine

Radiator

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Radiator
Cooling system - L SeriesRadiator

RADIATOR

Service repair no - 26.40.01

Remove

  1. Remove intercooler. See 600 DIESEL REPAIR MANUAL SUPPLEMENT - ENGINE MANAGEMENT SYSTEM
  2. Position drain tin to collect any coolant spillage.

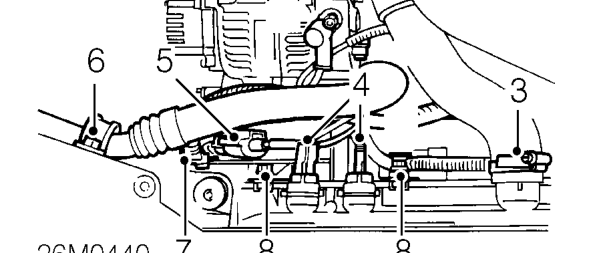

Radiator – Position drain tin to collect any coolant spillage.
  1. Loosen clip and disconnect coolant top hose from radiator.
  2. Disconnect Lucars from switches on radiator.
  3. Disconnect multiplug from RH cooling fan and move harness aside.

Models with air conditioning only

  1. Remove nut securing air conditioning pipe to bonnet locking platform.

All models

  1. Release clip securing harness to cooling fan.
  2. Remove 2 bolts securing RH cooling fan to radiator.
  3. Carefully manoeuvre RH cooling fan from vehicle.
All models – Carefully manoeuvre RH cooling fan from vehicle.

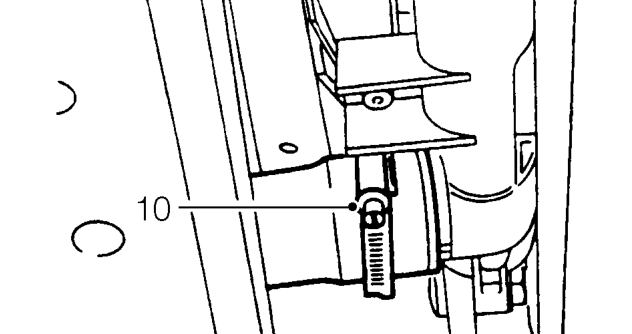

  1. Loosen clip and disconnect bottom hose from radiator.
All models – Loosen clip and disconnect bottom hose from radiator.

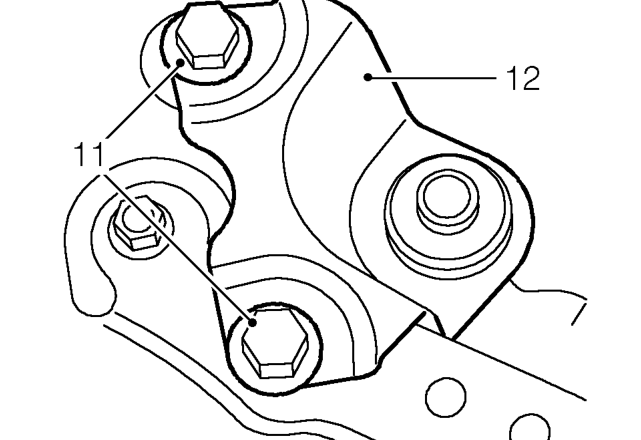

  1. Remove 2 bolts securing radiator mounting bracket to bonnet locking platform.
  2. Remove bracket.
