Coolant pump

COOLANT PUMP

Service repair no - 26.50.01

Remove

1. Remove underbelly panel. See BODY, Exterior fittings.
2. Drain cooling system. See Adjustments.

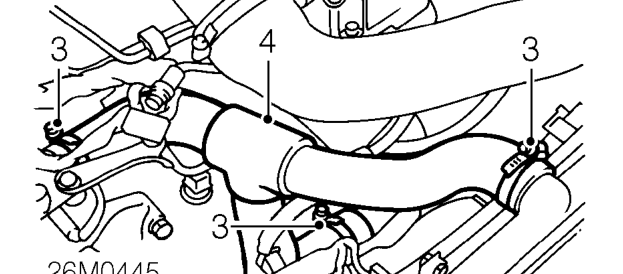

3. Loosen clips and release top hose from coolant outlet elbow, radiator and thermostat housing.
4. Remove top hose from engine.

5. Loosen clip and release coolant hose from pump housing.

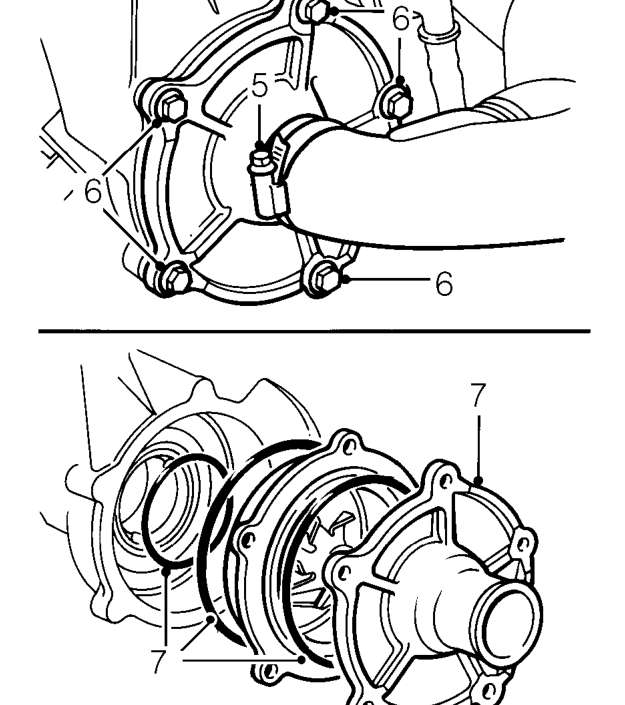

6. Remove 5 bolts securing cover to coolant pump.
7. Remove cover and discard ’O’ rings.
8. Remove coolant pump from housing and discard ’O’ rings.

Refit

1. Clean coolant pump housing and mating faces.
2. Lubricate new ’O’ rings with loctite 405 and fit to coolant pump and coolant pump cover.
3. Fit coolant pump and cover and position power steering pipe bracket.
4. Fit and tighten bolts securing coolant pump to 45 Nm.
5. Connect hose to coolant pump housing and tighten clip.
6. Fit radiator top hose to coolant outlet elbow and tighten clip.
7. Connect radiator top hose to radiator and thermostat housing and tighten clips.
8. Fit underbelly panel. See BODY, Exterior fittings.
9. Refill cooling system. See Adjustments.
