Thermostat (page 2 of 2)

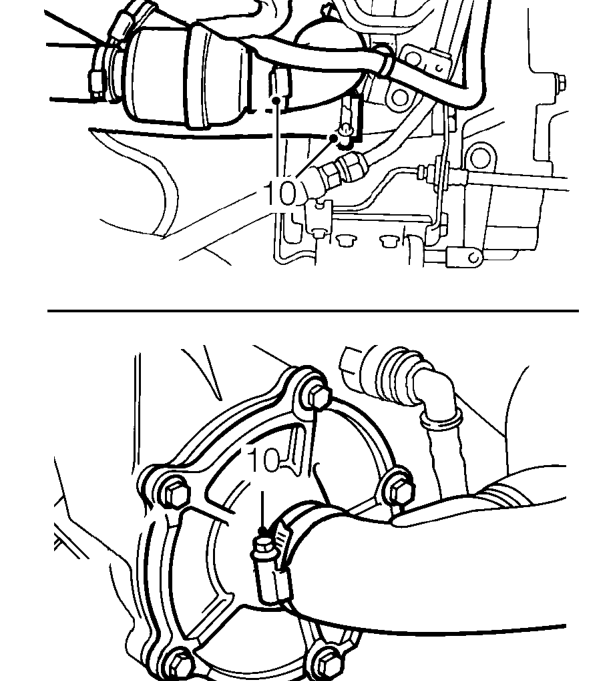

10. Loosen hose clips at water pump, water rail and thermostat housing.
11. Disconnect 3 hose connections.
12. Remove thermostat housing with top hose and water pump hose attached.

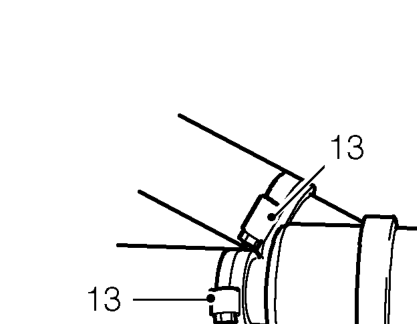

13. Loosen 2 hose clips and remove top and water pump hose from thermostat housing.

Refit

1. Fit hose to water pump and coolant rail.
2. Tighten hose clips.
3. Fit thermostat to engine oil cooler and water pump hoses.
4. Tighten hose clips.
5. Fit top hose to thermostat, radiator and coolant outlet elbow.
6. Tighten hose clips.
7. Reposition engine harness and fit bolt securing harness bracket to FIP support bracket.
8. Secure engine harness clips.
9. Connect hose to turbocharger outlet pipe and tighten clip.
10. Fit intercooler outlet hose and tighten clips.
11. Fit engine acoustic cover. See BODY, Exterior fittings.
12. Refill cooling system. See Adjustments.
