THERMOSTAT

Service repair no - 26.45.09

Remove

  1. Remove engine acoustic cover. See BODY, Exterior fittings.
  2. Drain cooling system. See Adjustments.
Thermostat – Drain cooling system. See Adjustments.

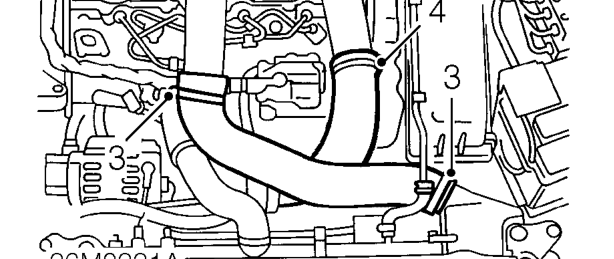

  1. Loosen 2 clips and remove intercooler outlet hose.
  2. Loosen clip and disconnect hose from turbocharger outlet pipe for access to engine harness.
Thermostat – Loosen clip and disconnect hose from turbocharger outlet pipe for access to engine harness

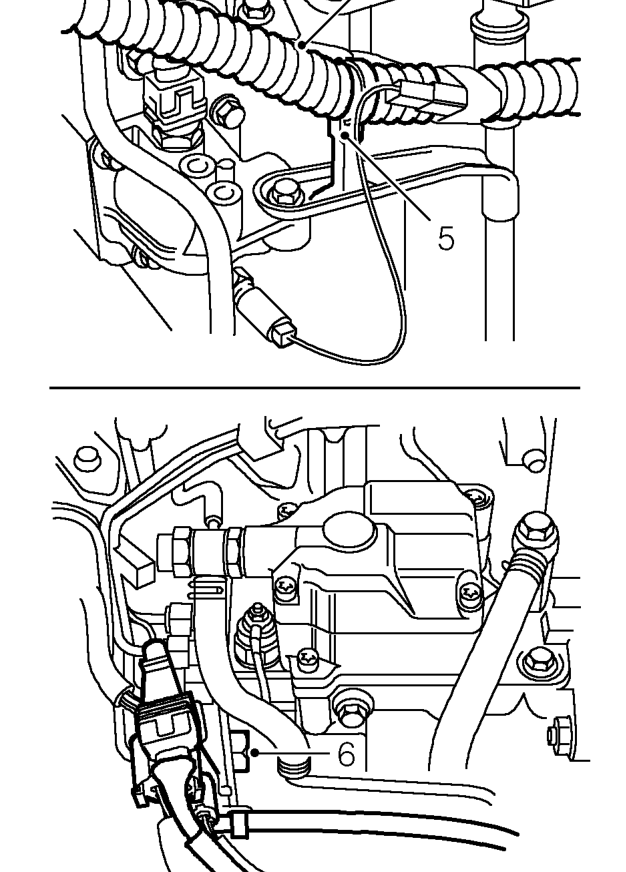

  1. Release engine harness clips from dipstick tube bracket, multiplug support bracket at FIP and bracket at gearbox adaptor plate.
  2. Remove bolt securing multiplug support bracket to FIP bracket.
  3. Lift engine harness onto plenum for access to hoses.
Thermostat – Lift engine harness onto plenum for access to hoses.

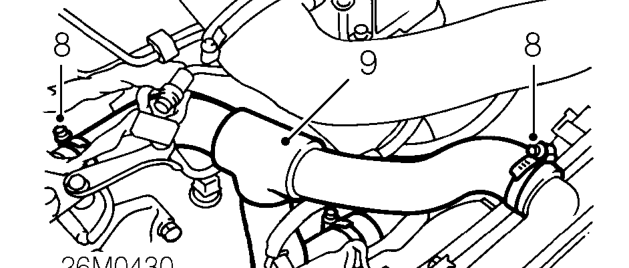

  1. Loosen top hose clips at radiator and coolant outlet elbow.
  2. Disconnect hose from radiator and coolant outlet elbow.
