Rover 600 Repair Manual Supplement (1993-1999)06 · Cooling system - L Series
06 · Engine

Coolant pump mounting

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Coolant pump mounting
Cooling system - L SeriesCoolant pump mounting
  1. Connect hose to coolant pump housing and tighten clip.
  2. Fit radiator top hose to coolant outlet elbow and tighten clip.
  3. Connect radiator top hose to radiator and thermostat housing and tighten clips.
  4. Fill cooling system. See Adjustments.
  5. Replace receiver/drier. See AIR CONDITIONING, Repairs.
  6. Recharge air conditioning system. See REPAIR MANUAL - Air Conditioning, Adjustments.

COOLANT PUMP MOUNTING

Service repair no - 26.50.42

Remove

  1. Disconnect battery earth lead.
  2. Remove PAS pump. See STEERING, Repairs.
  3. Drain cooling system. See Adjustments.

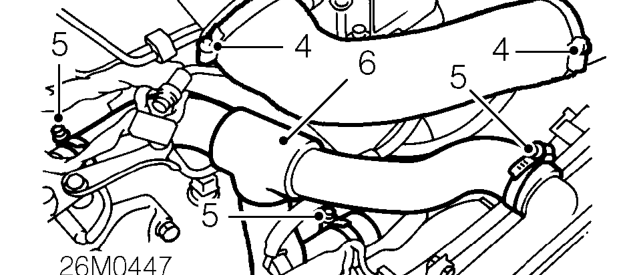

Coolant pump mounting – Drain cooling system. See Adjustments.
  1. Loosen 2 clips and remove hose between intercooler and inlet manifold.
  2. Loosen clips securing coolant pipe between radiator, coolant outlet elbow and thermostat.
  3. Release coolant pipe from radiator, outlet elbow and thermostat and remove.
