Radiator cooling fan - RH

RADIATOR COOLING FAN - RH

Service repair no - 26.25.34

Remove

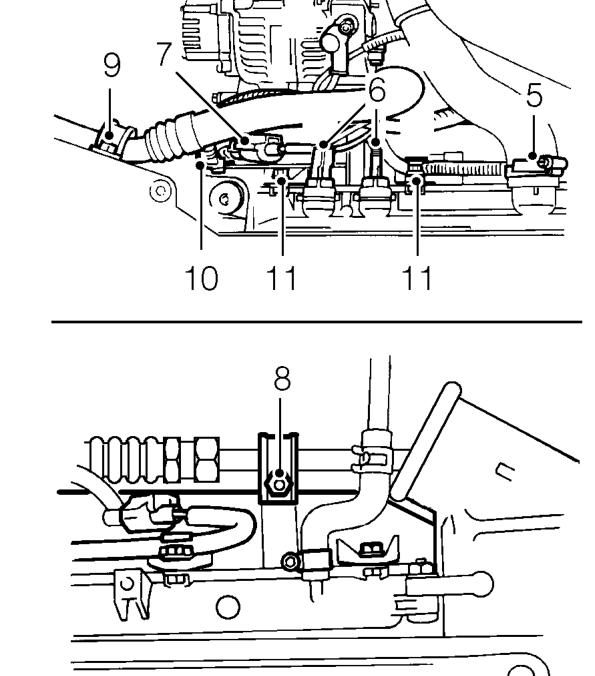

1. Remove acoustic cover. See BODY, Exterior fittings.
2. Loosen 2 clips securing hose between intercooler and inlet manifold.
3. Remove intercooler hose.
4. Position drain tin to collect any coolant spillage.

5. Loosen clip and disconnect coolant top hose from radiator.
6. Disconnect Lucars from switches on radiator.
7. Disconnect multiplugs from cooling fans and move harness aside.

Models with air conditioning only

8. Remove bolt securing air conditioning pipe to LH cooling fan.
9. Remove nut securing air conditioning pipe to bonnet locking platform.

All models

10. Release clip securing harness to cooling fan.
11. Remove 2 bolts securing cooling fan to radiator.
12. Carefully manoeuvre cooling fan from vehicle. Do not carry out further dismantling if component is removed for access only.

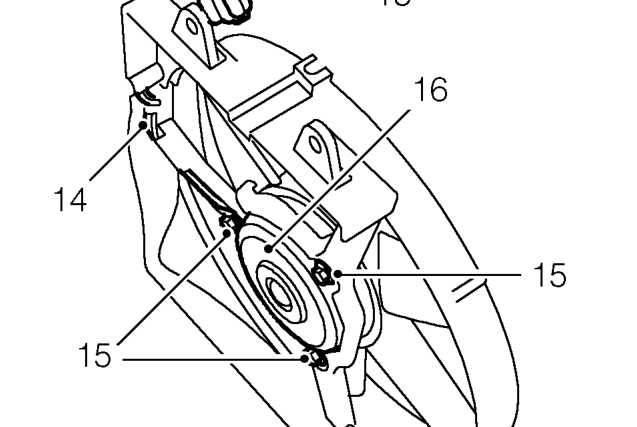

13. Release multiplug from cooling fan housing.
14. Release harness from clips on housing.
15. Remove 3 nuts securing fan motor to fan housing and collect washers.
16. Remove motor from housing.
17. Fit motor to housing and secure with bolts.
18. Secure harness and multiplug to clips on housing.

Refit

1. Carefully manoeuvre cooling fan into position in vehicle.
2. Fit and tighten bolts securing cooling fan to radiator.
3. Secure harness to cooling fan with clip.
