Rover 600 Repair Manual Supplement (1993-1999)06 · Cooling system - L Series
06 · Engine

Models with air conditioning only

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Models with air conditioning only
Cooling system - L SeriesModels with air conditioning only

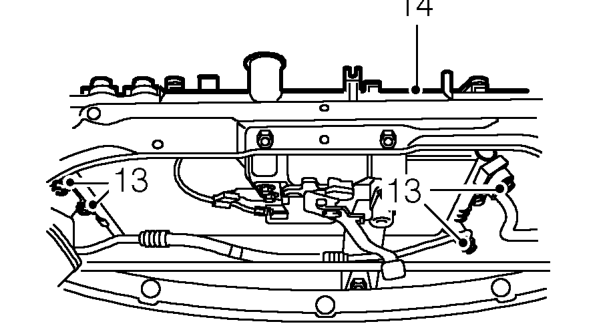

Diagram

Models with air conditioning only

  1. Remove 4 bolts securing evaporator to radiator.

All models.

  1. Remove radiator. Do not carry out further dismantling if component is removed for access only.

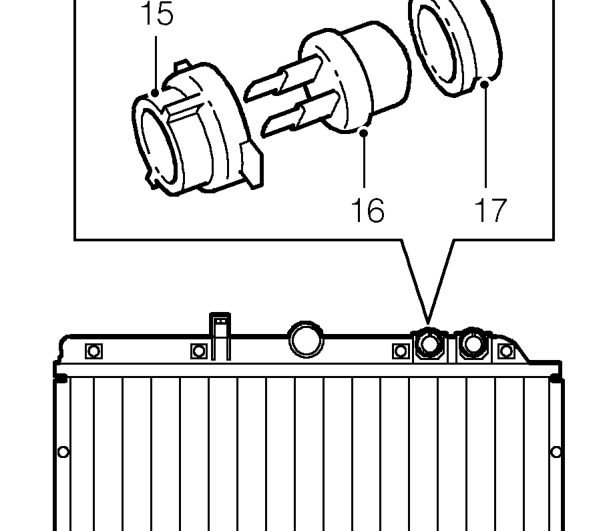

All models. – Remove radiator. Do not carry out further dismantling if component is removed for access o
  1. Remove lock rings from switches in radiator.
  2. Remove switches from radiator.
  3. Remove rubber grommets from radiator.
  4. Fit rubber grommets to switches.
  5. Fit switches to radiator.
  6. Fit locking rings to switches.

Refit

  1. Position radiator in vehicle.

Models with air conditioning only

  1. Fit and tighten bolts securing evaporator to radiator.

All models

  1. Fit radiator mounting bracket to bonnet locking platform and secure with bolts.
  2. Connect bottom hose to radiator and secure with clip.
  3. Manoeuvre RH cooling fan into position in vehicle.
  4. Fit bolts securing RH cooling fan to radiator.
  5. Secure harness to RH cooling fan with clip.

Models with air conditioning only

  1. Fit nut securing air conditioning pipe to bonnet locking platform.

All models

  1. Connect multiplug to RH cooling fan.
  2. Connect Lucars to switches on radiator.
  3. Fit coolant top hose to radiator and secure with clip.
  4. Remove drain tin.
  5. Fit intercooler. See 600 DIESEL REPAIR MANUAL SUPPLEMENT - ENGINE MANAGEMENT SYSTEM
  6. Top up cooling system.
