Radiator cooling fan - LH

RADIATOR COOLING FAN - LH

Service repair no - 26.25.23

Remove

1. Remove acoustic cover. See BODY, Exterior fittings.

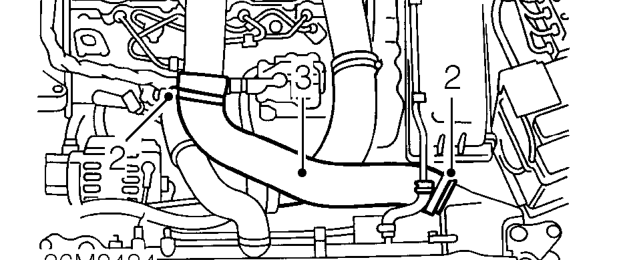

2. Loosen 2 clips securing hose between intercooler and inlet manifold.
3. Remove intercooler hose.

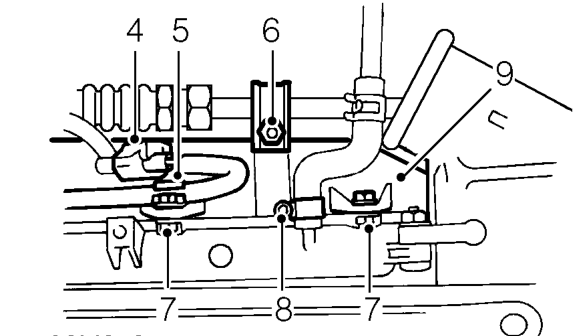

4. Disconnect multiplug from cooling fan.
5. Release harness from cooling fan.

Models with air conditioning

6. Remove bolt securing air conditioning pipe to cooling fan.

All models

7. Remove 2 bolts securing top of cooling fan to radiator and collect harness bracket.
8. Loosen clip and disconnect expansion tank breather hose from top of radiator. Move hose aside.
9. Carefully manoeuvre cooling fan from vehicle.

Do not carry out further dismantling if component is removed for access only.

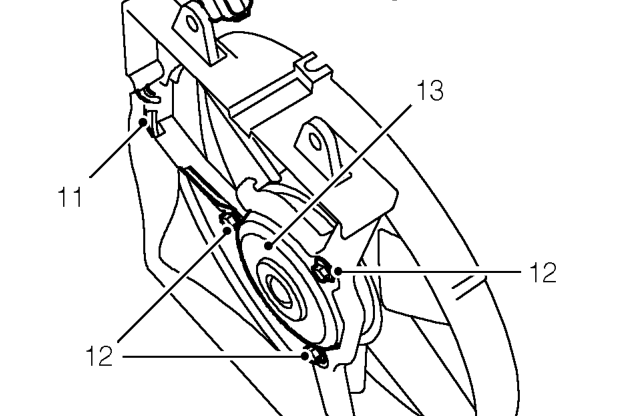

10. Release multiplug from cooling fan housing.
11. Release harness from clips on housing.
12. Remove 3 nuts securing fan motor to housing and collect washers.
13. Remove motor from housing.
14. Fit motor to housing and secure with bolts.
15. Secure harness and multiplug to clips on housing.

Refit

1. Manoeuvre cooling fan into position in vehicle.
2. Connect expansion tank breather hose to radiator and secure with clip.
3. Position harness bracket and fit bolts securing cooling fan to radiator.

Models with air conditioning only

4. Fit bolt securing air conditioning pipe to cooling fan.

All models

5. Secure harness to cooling fan bracket and connect multiplug.
6. Position hose between intercooler and inlet manifold and secure with clips.
7. Fit acoustic cover. See BODY, Exterior fittings.
8. Top up engine coolant.
