Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition12 · Steering
12 · Steering & suspension

Original page

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Original page
SteeringOriginal page

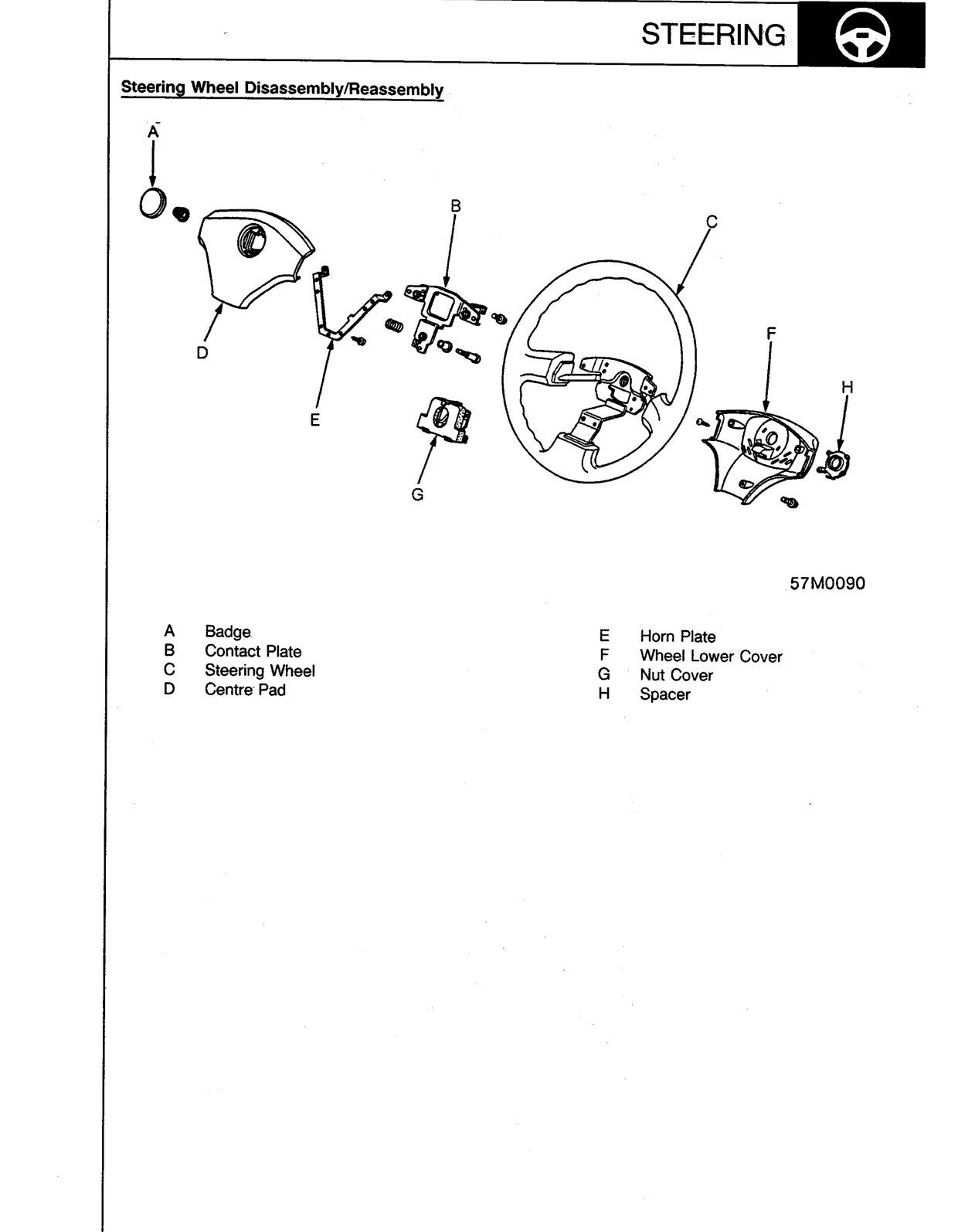

Original page – diagram from the Steering chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

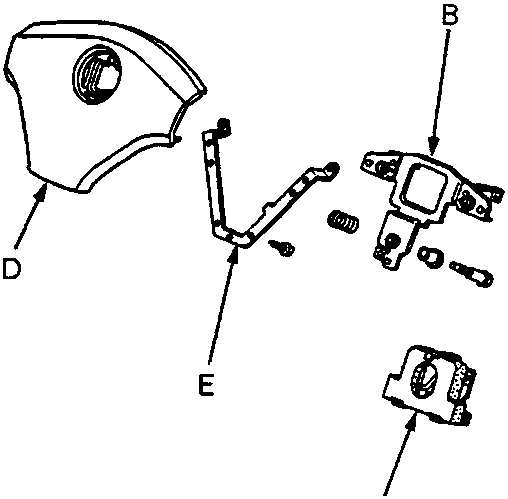

Exploded view diagram of the steering wheel components including badge, contact plate, centre pad, horn plate, and nut cover.

57M0090

ABadgeEHorn Plate
BContact PlateFWheel Lower Cover
CSteering WheelGNut Cover
DCentre PadHSpacer
