Steering gearbox

– Start the engine, let it run at idle, then turn the steering wheel lock – to – lock several times to bleed air from the system.

– Recheck the fluid level and add some if necessary.

CAUTION: Do not fill the reservoir beyond the upper level line.

STEERING GEARBOX

Steering Gearbox Removal

1. Drain the power steering fluid.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Remove road wheel(s).

1. A Steering Joint Cover
2. B Clip
3. C Clamp
4. Remove the steering joint cover.

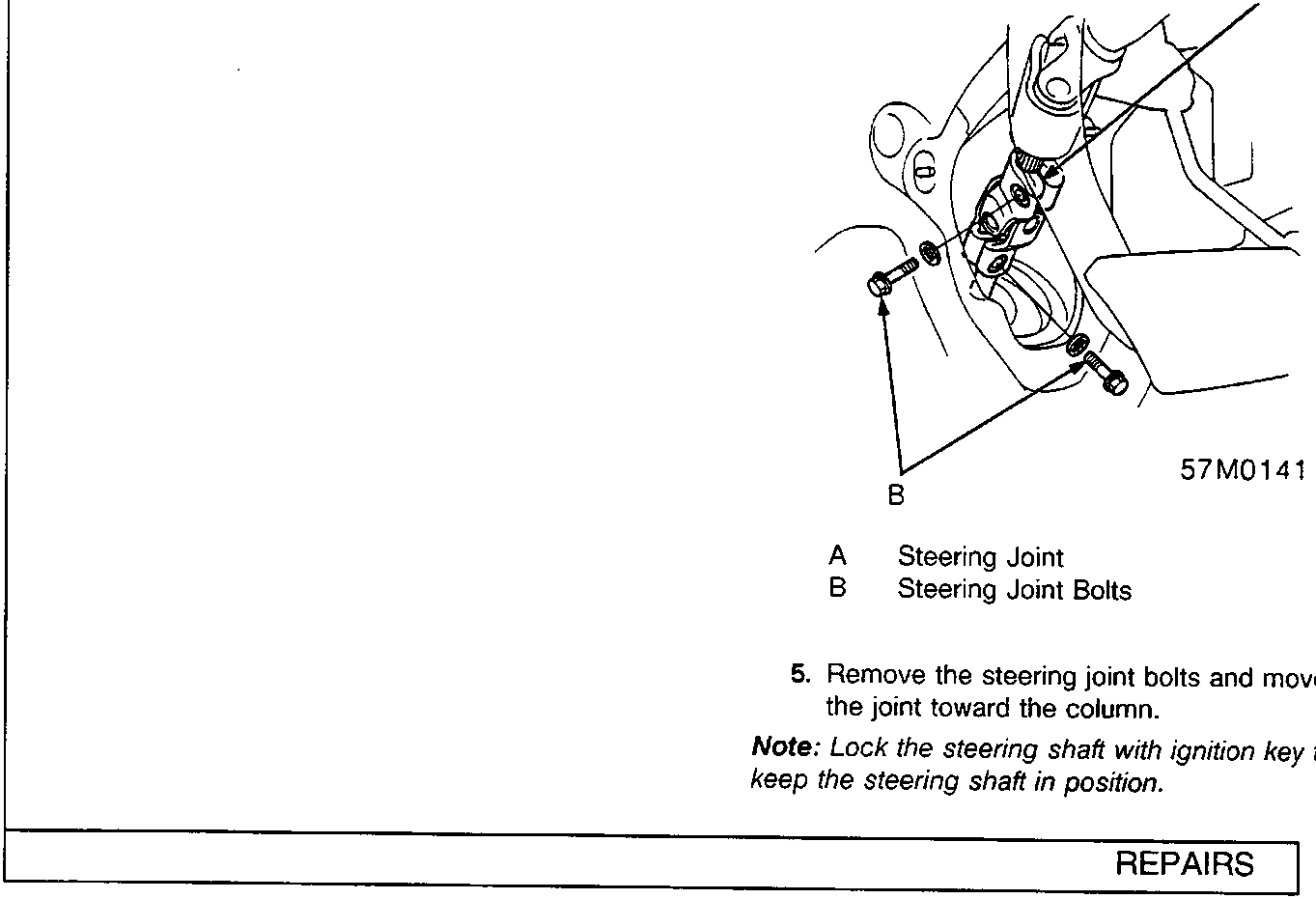

1. A Steering Joint
2. B Steering Joint Bolts
5. Remove the steering joint bolts and move the joint toward the column.

Note: Lock the steering shaft with ignition key to keep the steering shaft in position.
