SteeringFlow Control Valve Installation · page 2 of 2

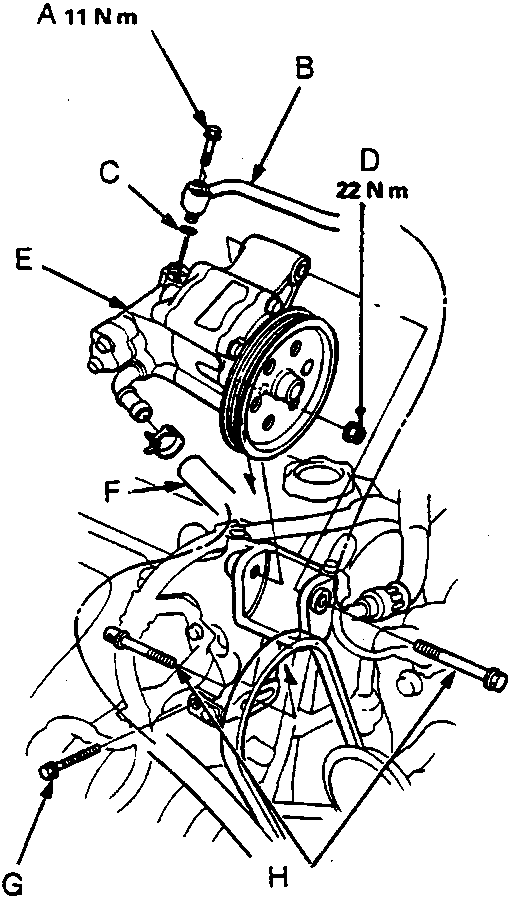

Diagram of power steering pump installation showing labeled components A through H with torque values 11 Nm, 22 Nm, and 45 Nm.
  1. Bolt
  2. Outlet Hose
  3. O - ring
  4. Pump Mounting Nut
  5. Pump
  6. Inlet Hose
  7. Adjusting Bolt
  8. Pump Mounting Bolts
  9. Connect the inlet and outlet houses the pump fittings securely.
  10. Loosely install the pump in the pump bracket with mounting bolts.
Cross-section diagram of a belt on a pulley, labeled A (belt) and B (pulley).
  1. Power Steering Pump Belt
  2. Pulley
  1. Install the pump belt.

CAUTION:

  • Make sure that the power steering pump belt is securely on the groove of the pulleys.
  • Do not get power steering fluid or grease in the pump belt or pulley faces. Clean off any fluid or grease before installation.

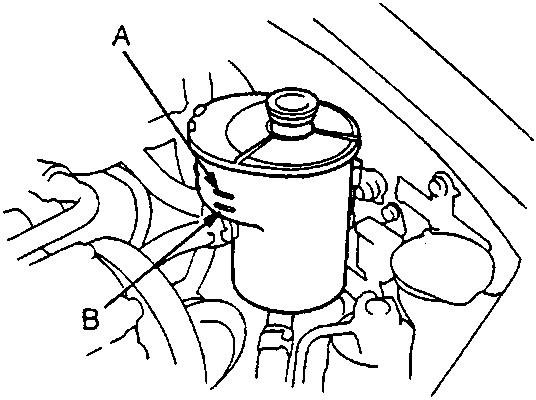

Diagram of power steering reservoir showing upper level line A and lower level line B.
  1. Upper Level Line
  2. Lower Level Line
  1. Adjust the pump belt.
  2. Fill the reservoir to the upper level line.

Note: Take care not to spill the fluid on the body and parts. Wipe off the spilled fluid at once.

CAUTION: Use only Unipart Power Steering Fluid. Using other fluids, such as ATF or other manufacturer's power steering fluid, will damage the system.

System capacity = 1.8 litre
Reservoir capacity = 0.5 litre.
