12 · Steering & suspension

Flow Control Valve Installation

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Flow Control Valve Installation
SteeringFlow Control Valve Installation · page 1 of 2

Flow Control Valve Installation

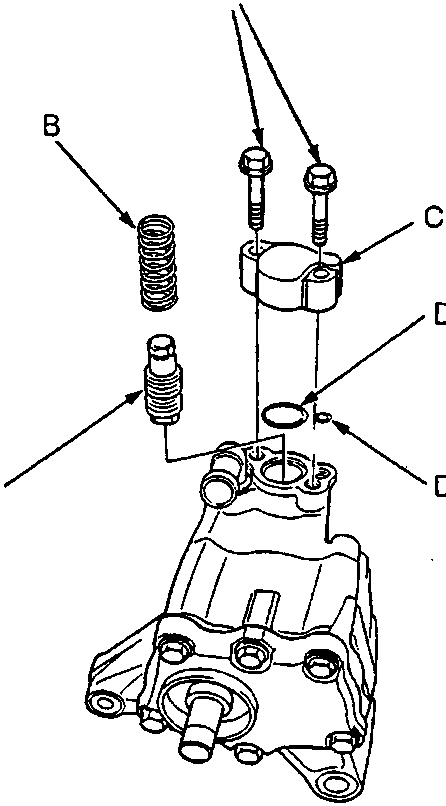

Exploded view of flow control valve assembly showing components A, B, C, and D with a torque specification of 11 N m

11 Nm

  1. Flow Control Valve
  2. Valve Spring
  3. Housing Port Cover
  4. O - ring
  1. Install the flow control valve in the reverse order of removal.
  • Apply steering grease to new O - rings.
  • Coat the flow control valve with power steering fluid then install it and valve spring.

Note: When replacing the flow control valve, be sure the replacement flow control valve has the same identification letter as the original flow control valve.

Pulley Installation

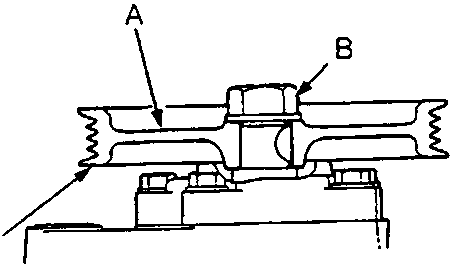

Diagram of steering pump pulley installation showing flat surface side (A), pulley nut (B), and pulley (C)
  1. Flat surface side.
  2. Pulley Nut
  3. Pulley
  1. Hold the steering pump in a vice with soft jaws.

CAUTION: Be careful not to damage the pump housing with the jaws of the vice.

  1. Install the pump pulley with its flat, surface toward out, as shown. Then install the pulley nut.

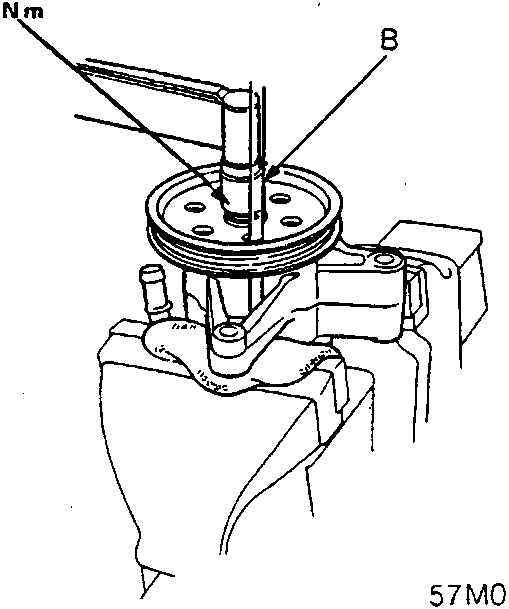

Steering pump pulley being tightened with an extension bar (B) and pulley nut (A) under a torque of 65 N m

65 Nm

  1. Pulley Nut (Left hand threads)
  2. Extension Bar
  1. Hold the pulley with an extension bar and tighten the pulley nut.
  2. Check that the pump turns smoothly by turning the pulley.
