Power steering pump

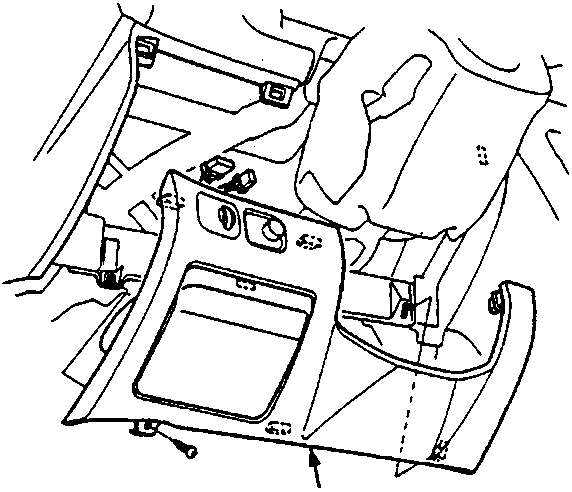

A Lower Cover

11. Install the lower cover.
12. Install the steering wheel.

POWER STEERING PUMP

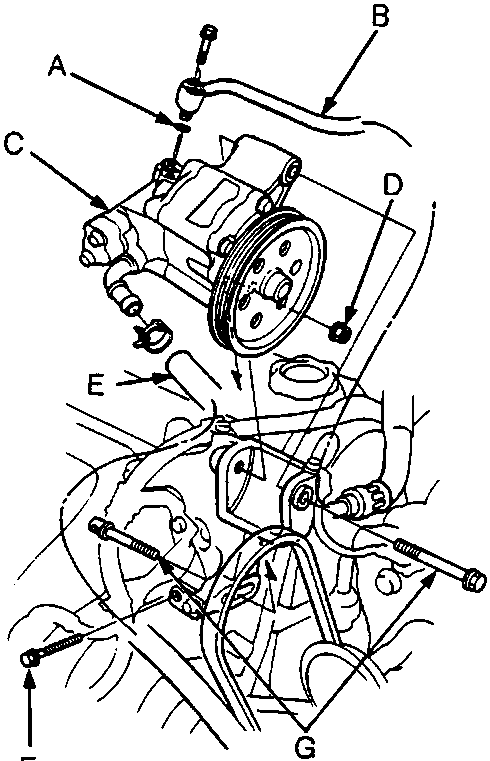

Power Steering Pump Removal

57M0110

Note: Before disconnecting the hoses from the pump, place a suitable container under the car.

1. Drain the fluid from the system.
2. Disconnect the inlet and outlet hoses from the pump and plug them.
3. Remove the pump belt by loosening the pump mounting bolt, nut and adjusting bolt.

Note: Take care not to spill the fluid on the body and parts. Wipe off the spilled fluid at once.

4. Remove the pump mounting bolts and nut, then remove the pump.

Note: Do not turn the steering wheel while the pump is removed.

5. Wrap the opening of the pump with a piece of tape to prevent any foreign material.
