Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition12 · Steering
12 · Steering & suspension

Steering Column Removal (page 5 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SteeringSteering Column Removal · page 5 of 5
  1. Install the steering joint cover with the clamps and clips.
  2. Connect the ignition switch wire connectors to the under – dash fuse/relay box.

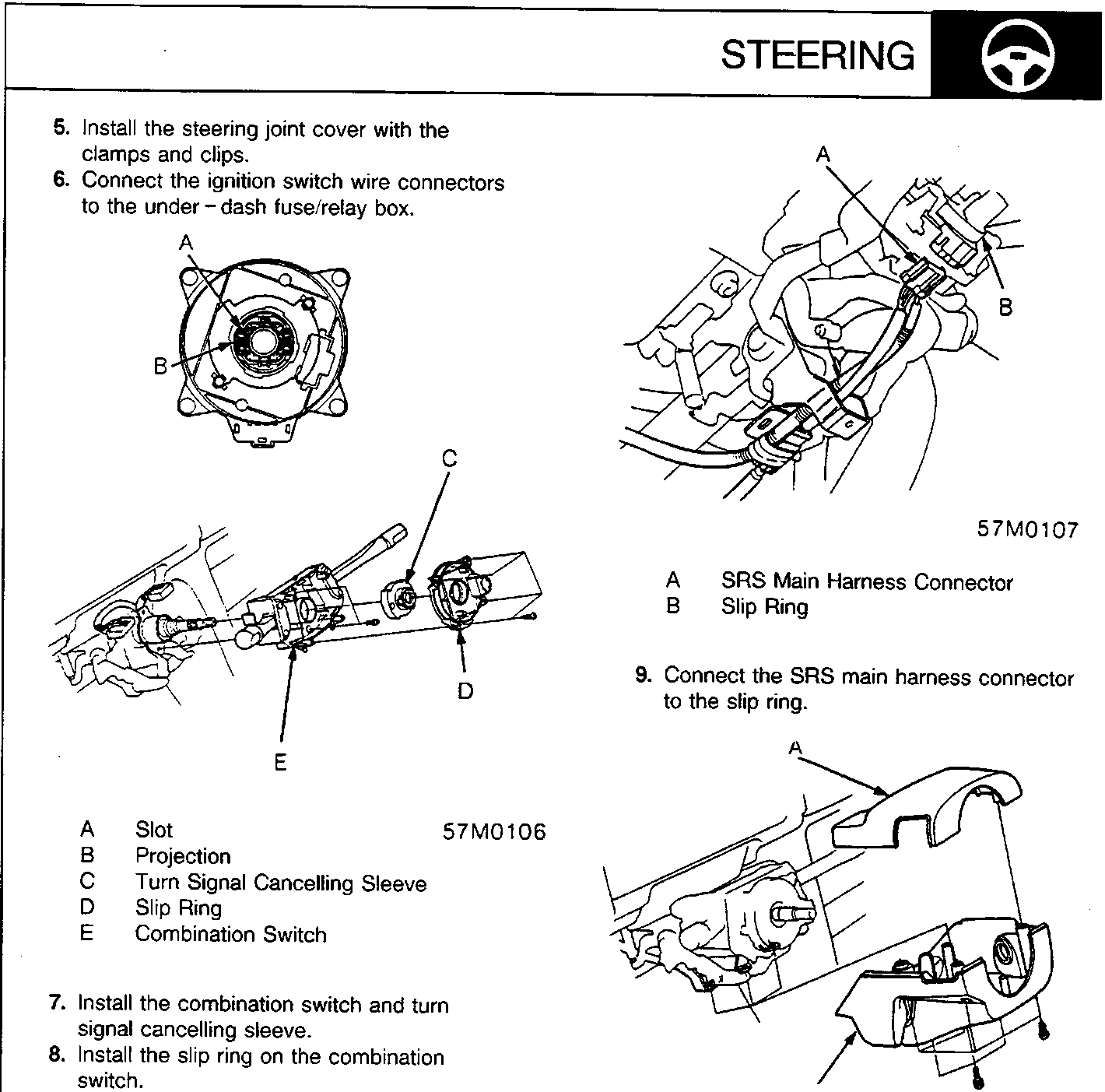

Diagram of steering column components showing combination switch, slip ring, and cancelling sleeve assembly with callout labels A through E.
  1. Slot
  2. Projection
  3. Turn Signal Cancelling Sleeve
  4. Slip Ring
  5. Combination Switch

57M0106

  1. Install the combination switch and turn signal cancelling sleeve.
  2. Install the slip ring on the combination switch.
Diagram of SRS main harness connector and slip ring assembly with callout labels A and B.

57M0107

  1. A SRS Main Harness Connector
  2. B Slip Ring
  1. Connect the SRS main harness connector to the slip ring.
Diagram of upper and lower steering column covers being installed with callout labels A and B.

57M0108

  1. A Lower Column Cover
  2. B Upper Column Cover
  1. Install the upper and lower column covers.

Note: Align the slot in the cancelling sleeve with the projection on the slip ring.
