12 · Steering & suspension

Steering Column Removal (page 2 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SteeringSteering Column Removal · page 2 of 5

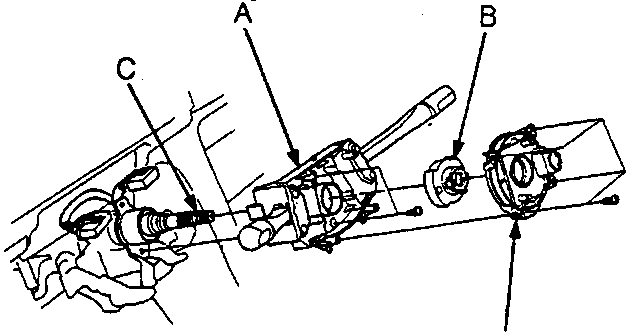

Diagram of steering column components labeled A, B, C, D
57M0096 A Combination Switch B Turn Signal Cancelling Sleeve C Column Shaft D Slip Ring

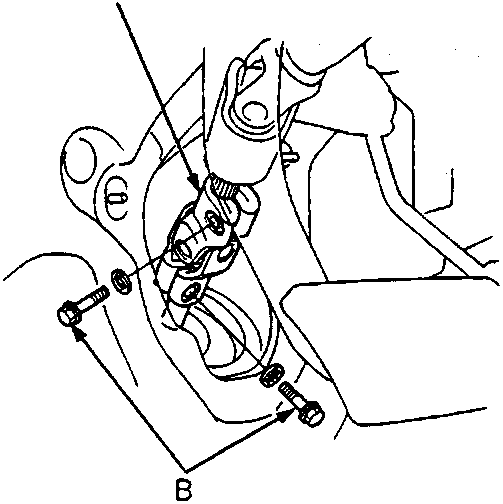

Diagram of steering joint area labeled A, B
57M0098 A Steering Joint B Steering Joint Bolts 5. Remove the slip ring and turn signal cancelling sleeve. Note: Do not disassemble the slip ring. 6. Disconnect the connectors from the combination switch, then remove the combination switch from the column shaft.

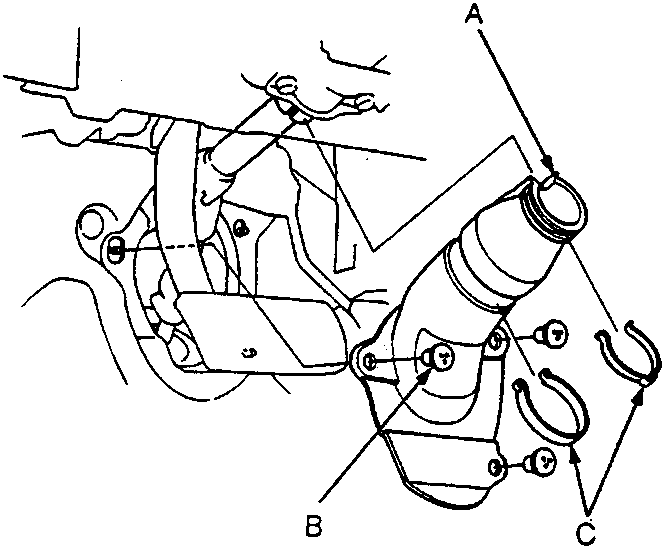

Diagram of steering joint cover area labeled A, B, C
57M0097 A Steering Joint Cover B Clip C Clamps 7. Remove the steering joint cover. 8. Remove the steering joint bolts, and move the joint toward the column.

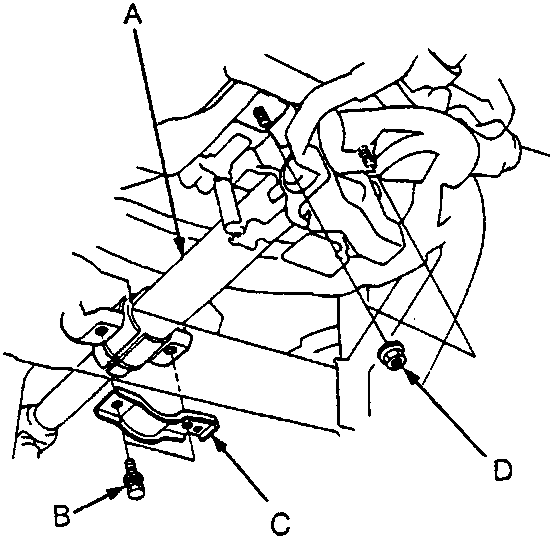

Diagram of steering column attachment area labeled A, B, C, D
57M0099 A Steering Column B Flange Nuts C Column Holder D Flange Bolts 9. Remove the steering column by removing the attaching nuts and bolts.
