Steering57M0126 · page 1 of 2

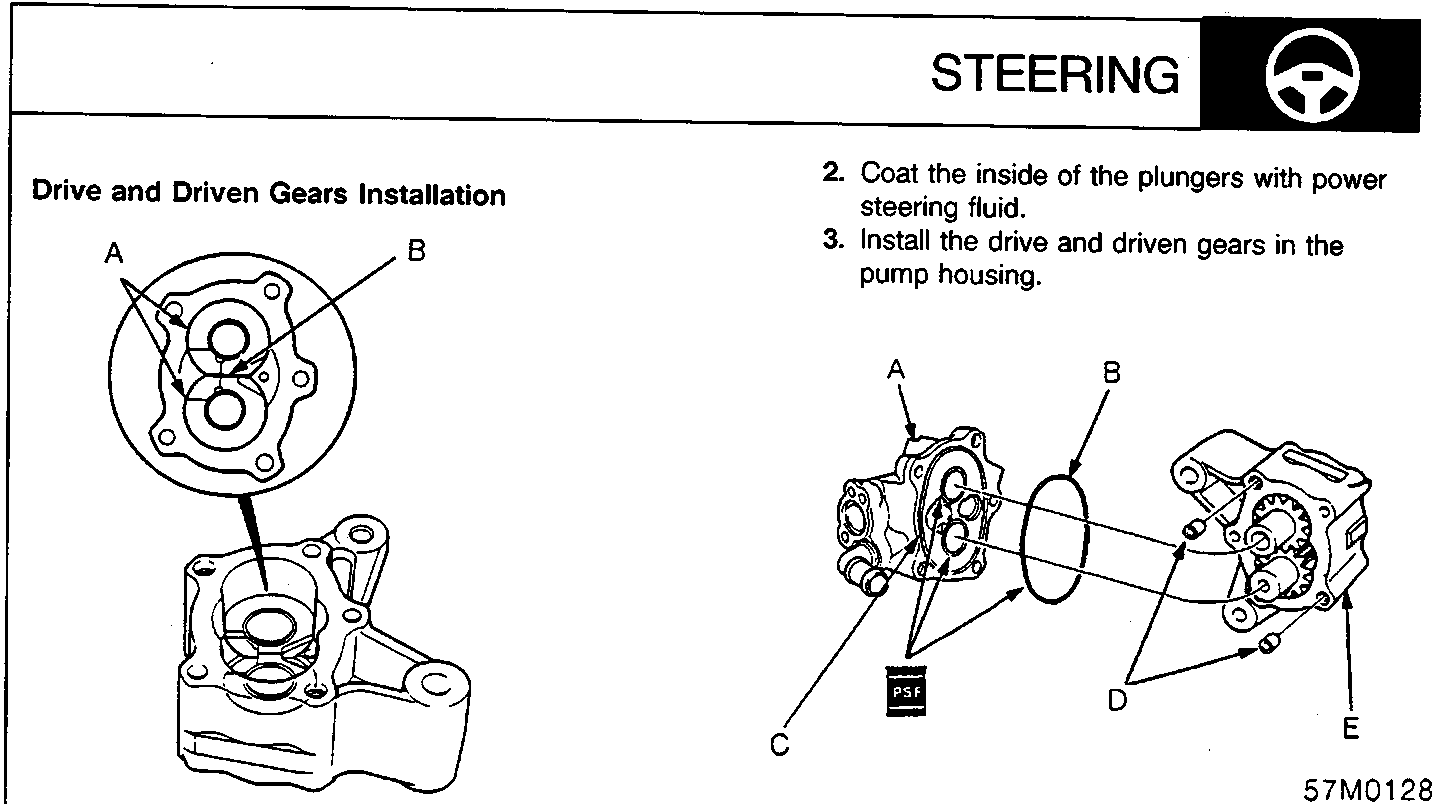

Diagram showing drive and driven gears installation with callouts A (Plungers) and B (Align Cutouts), and an exploded view of the pump assembly with callouts A, B, C, D, E and a PSF icon.

Note: Install the plungers so the cutouts are aligned as shown.

  1. Coat the outer surfaces of the plungers with power steering fluid, then install them in the pump housing. Make sure the plunger holes are positioned as shown.
  2. Coat the inside of the plungers with power steering fluid.
  3. Install the drive and driven gears in the pump housing.
  4. Coat the port housing groove with power steering fluid first, then position a new housing seal on the port housing.
  5. Coat the bushings on the port housing with power steering fluid.
  6. Install the dowel pins in the pump housing.
  7. Install the port housing on the pump housing.
Exploded diagram of pump components showing Drive Gear (A), Driven Gear (B), Pump Housing (C) with PSF icon, and Port Housing assembly with callouts A, B, C, D, E and a PSF icon.

57M0126

  • A Plungers
  • B Align Cutouts

57M0127

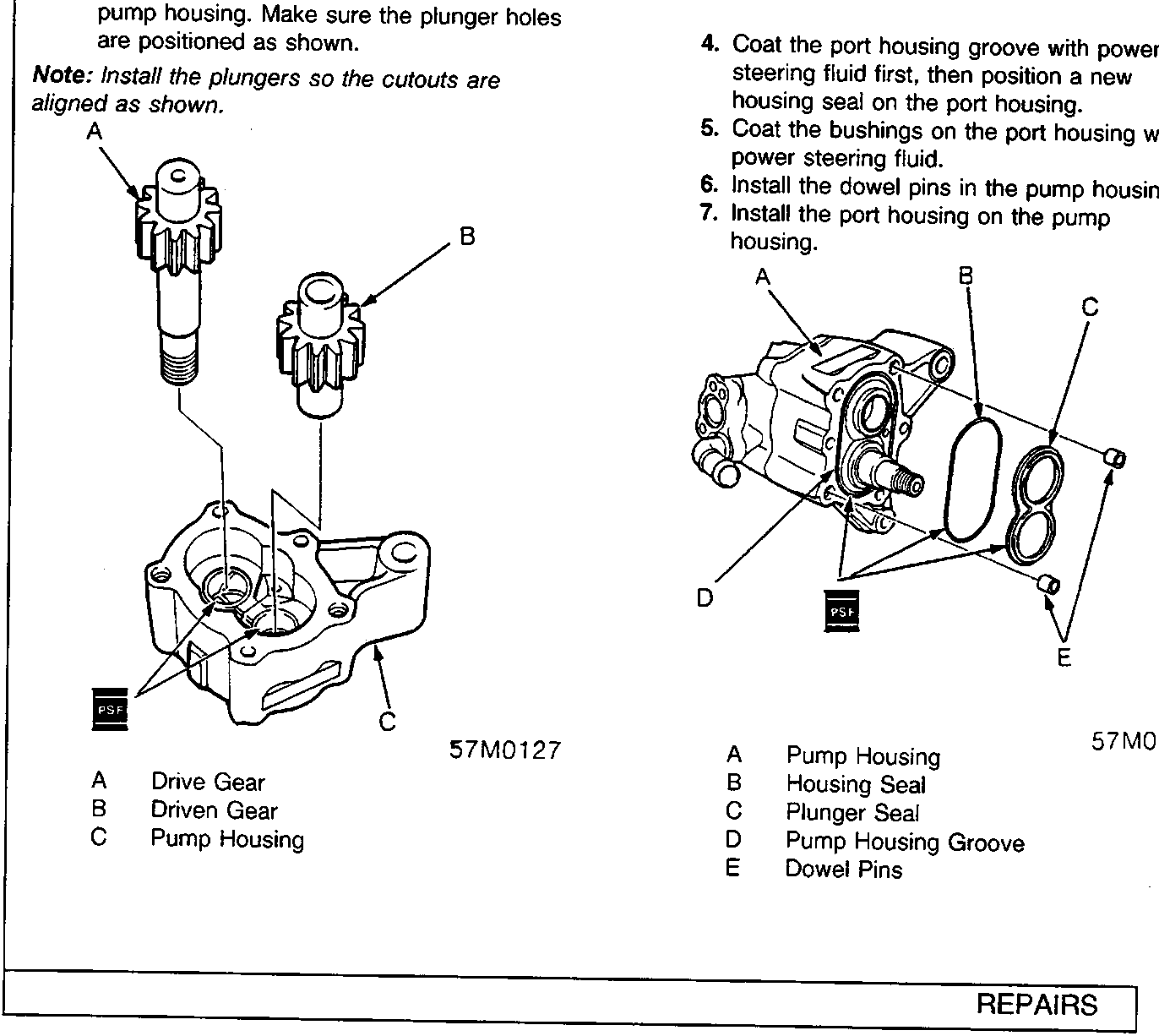

  • A Drive Gear
  • B Driven Gear
  • C Pump Housing

57M0128

  • A Port Housing
  • B Housing Seal
  • C Port Housing Groove
  • D Dowel Pins
  • E Pump Housing

57M0129

  • A Pump Housing
  • B Housing Seal
  • C Plunger Seal
  • D Pump Housing Groove
  • E Dowel Pins
