SteeringDrive and Driven Gears Removal · page 1 of 3
Diagram of relief valve components labeled A through G, including a bolt, shim, check ball, flow control valve, and spring. Torque value 13 Nm indicated near label B.
  1. Clamp the bottom end of the flow control valve in a vice with soft jaws.
  2. Unscrew the seat in the top end of the flow control valve and remove any shims, the relief check ball, relief valve and relief valve spring.
  3. Clean all the parts in solvent, dry them off, then reassemble and retest the flow control valve.

Note: If necessary, relief pressure is adjusted at the factory by adding shims under the seat. If you found shims in your valve, be sure you reinstall as many as you took out.

Drive and Driven Gears Removal

CAUTION: The pump components are made of aluminium. Be careful not to damage them when servicing.

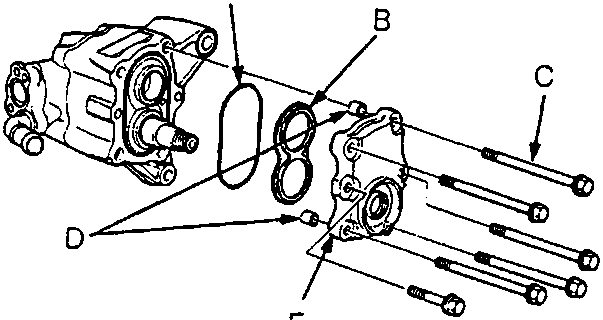

Exploded diagram of pump front cover assembly showing housing seal, plunger seal, flange bolts, dowel pins, and pump front cover labeled A through E.
  1. Remove the flange bolts, then remove the pump front cover, housing seal, plunger seal and dowel pins.

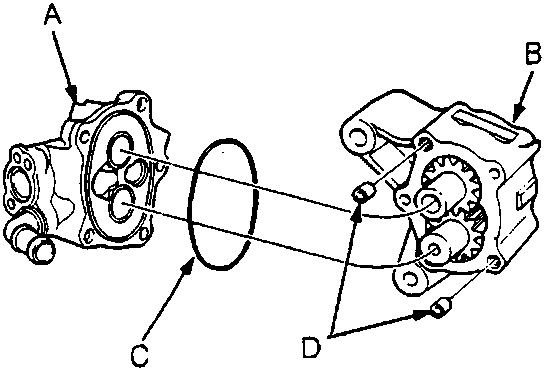

Exploded diagram of port housing and pump housing separation showing port housing, pump housing, housing seal, and dowel pins labeled A through D.
  1. Separate the port housing from the pump housing.
  2. Remove the dowel pins and housing seal from the port housing.

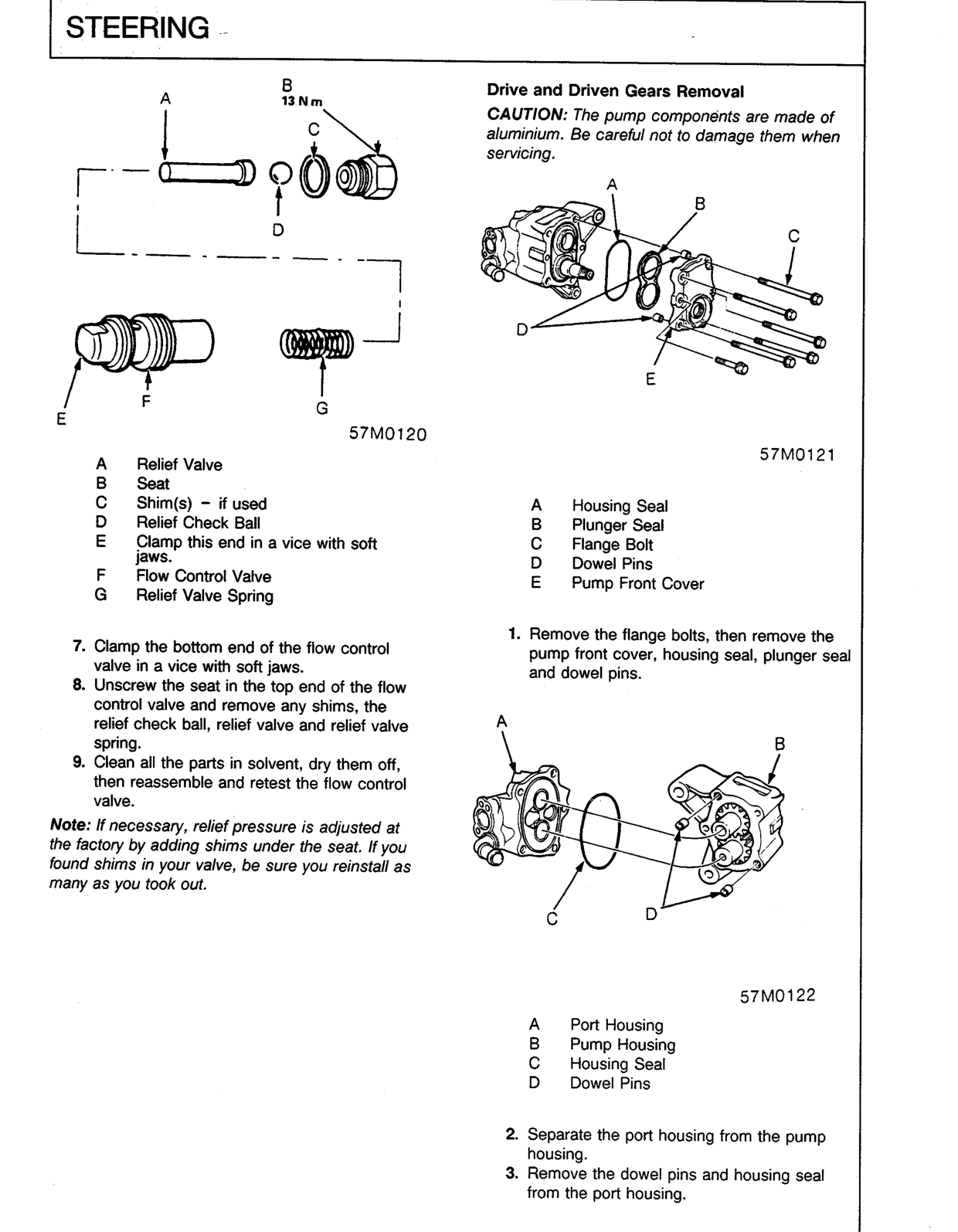

Original page
