Disassembly

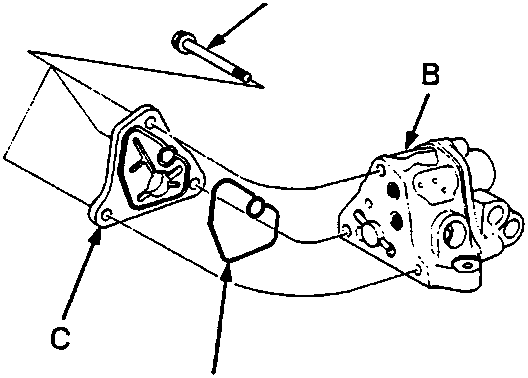

Diagram showing valve body assembly with labels A, B, C, and D pointing to bolts, body, cap, and seal respectively.

57M0173

  • A 6 mm Flange Bolts
  • B Valve Body
  • C Valve Body Cap
  • D Cap Seal
  1. Remove the valve body cap from the valve body.
  2. Remove the cap seal from the valve body cap and discard.

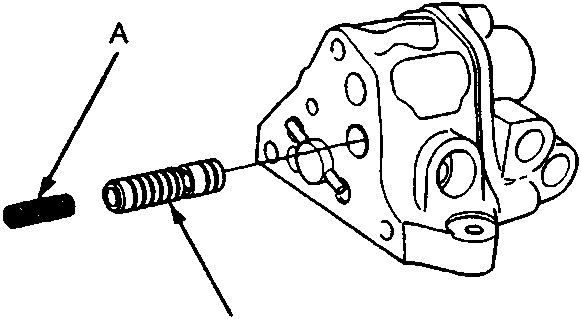

Diagram showing pressure control valve and spring being removed from the valve body, labeled A and B.

57M0174

  • A Valve Spring
  • B Pressure Control Valve
  1. Remove the pressure control valve and spring from the valve body.

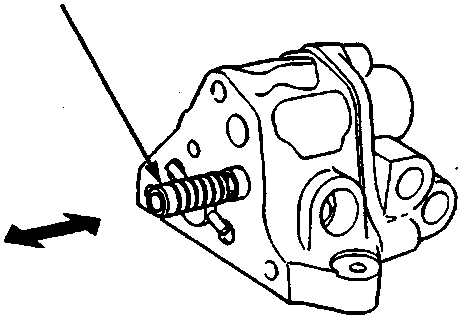

Diagram showing the pressure control valve being slid out of the valve body, labeled A.

57M0175

  • A Pressure Control Valve
  1. Check the pressure control valve:
  • Inspect its surface for scoring or scratches.
  • Slip it back into the valve body and make sure it slides smoothly without drag and without side play.

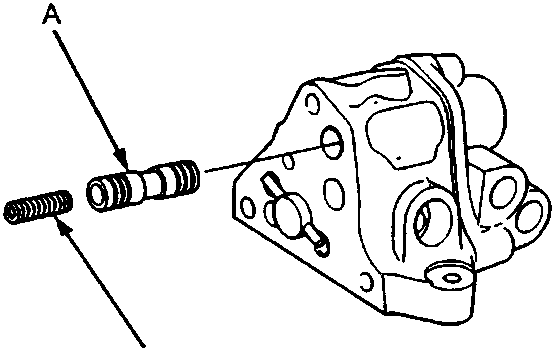

Diagram showing gain control valve and spring being removed from the valve body, labeled A and B.

57M0176

  • A Gain Control Valve
  • B Valve Spring

Note: If the valve body is damaged, replace the valve body unit (valve body, pressure control valve, gain control valve, 4-way valve) as an assembly.

  1. Remove the gain control valve and spring from the valve body.
