Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition12 · Steering
12 · Steering & suspension

57M0167A (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Steering57M0167A · page 2 of 2

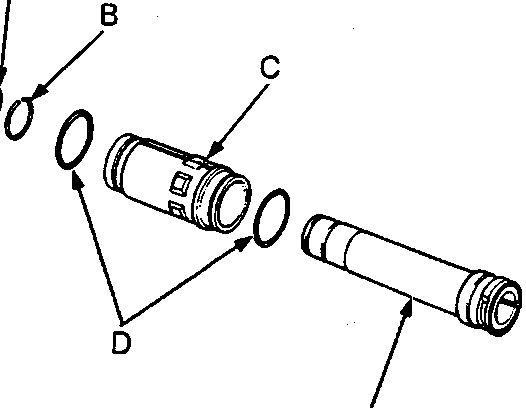

Exploded view diagram of seal retainer components labeled A through E

57M0170

  • A O-ring
  • B Snap Ring
  • C Cylinder Cap
  • D O-rings
  • E Seal Retainer
  1. Remove the O-ring and snap ring from the seal retainer. Discard the O-ring.
  2. Remove the cylinder cap from the seal retainer.
  3. Remove the O-rings from the cylinder cap. Discard the O-rings.

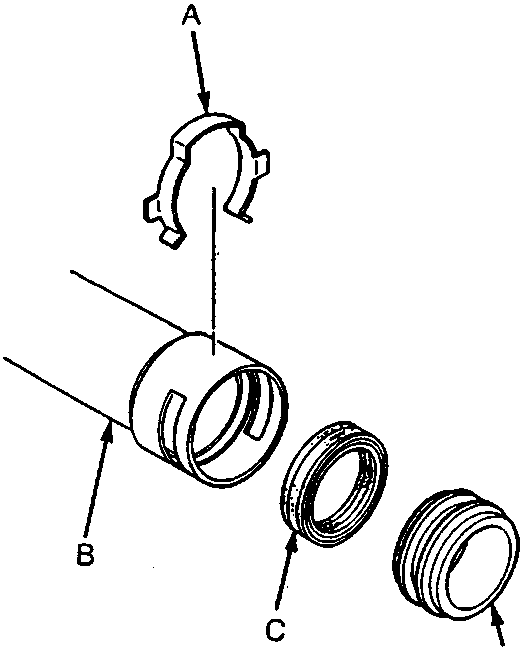

Exploded view diagram of seal retainer end components labeled A through D

57M0171

  • A Bushing Stopper Ring
  • B Seal Retainer
  • C Cylinder End Seal
  • D Rack Bushing B
  1. Remove the bushing stopper ring from the seal retainer. Inspect inner surface for damage.
  2. Remove the cylinder end seal and rack bushing B. Discard the cylinder end seal.

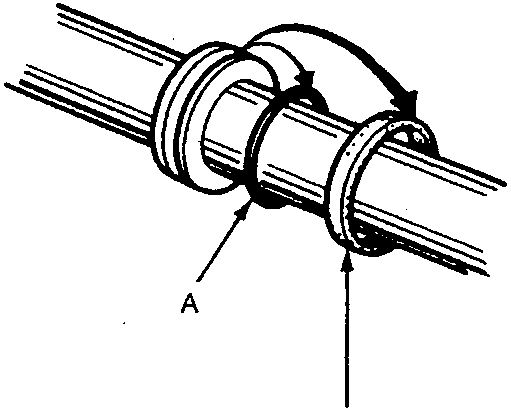

Diagram showing piston seal ring and O-ring on a rack shaft, labeled A and B

57M0172

  • A O-ring
  • B Piston Seal Ring
  1. Carefully pry the piston seal ring and O-ring off the rack. Replace seal ring and O-ring.
