SteeringSteering wheel (without srs)
  1. Install the maintenance lids.
  2. Connect the battery positive terminal and then connect the negative terminal.
  3. After installing the airbag assembly, confirm proper system operation:
  • Turn the ignition to ON: The instrument panel SRS indicator light should go on for about six seconds and then go off.
  • The SRS self diagnosis indicator (LED) should blink one time with the ignition switch ON.

STEERING WHEEL (WITHOUT SRS)

Steering Wheel (without SRS) Removal

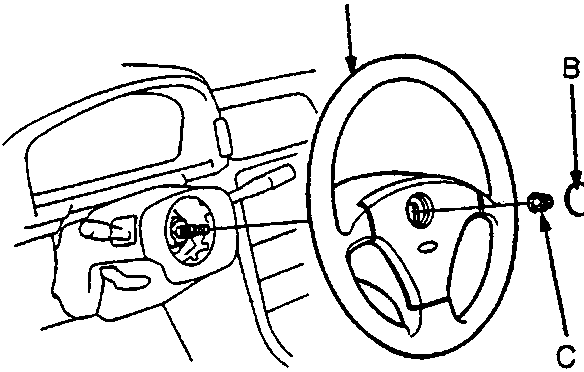

Diagram of steering wheel showing callouts A (Steering Wheel), B (Badge), and C (Steering Wheel Nut)

57M0089

  1. Steering Wheel
  2. Badge
  3. Steering Wheel Nut
  4. Remove the emblem with small screwdriver.

Note: Be careful not to damage the badge and steering wheel.

  1. Remove the steering wheel nut.
  2. Remove the steering wheel by rocking it slightly from side - to - side as you pull steadily with both hands.

Note: Remove the steering wheel with the front wheels in the straight ahead position.
