SteeringDisassembly · page 2 of 2

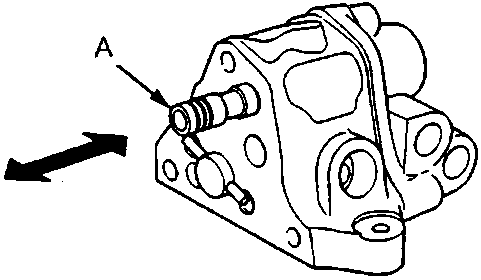

Diagram of the gain control valve assembly with callout A

57M0177

A Gain Control Valve

  1. Check the gain control valve:
  • Inspect its surface for scoring or scratches.
  • Slip it back into the valve body and make sure it slides smoothly without drag and without side play.

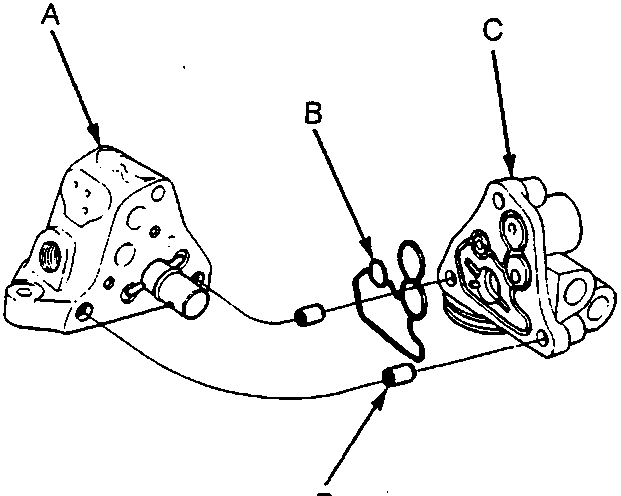

Exploded diagram of the valve body, port seal, port housing, and dowel pin assembly with callouts A, B, C, D

57M0178

AValve Body
BPort Seal
CPort Housing
DDowel Pin

Note: If the valve body is damaged, replace the valve body unit (valve body, pressure control valve, gain control valve, 4-way valve) as an assembly.

  1. Separate the valve body and port housing.
  2. Remove the port seal and dowel pins from the port housing.

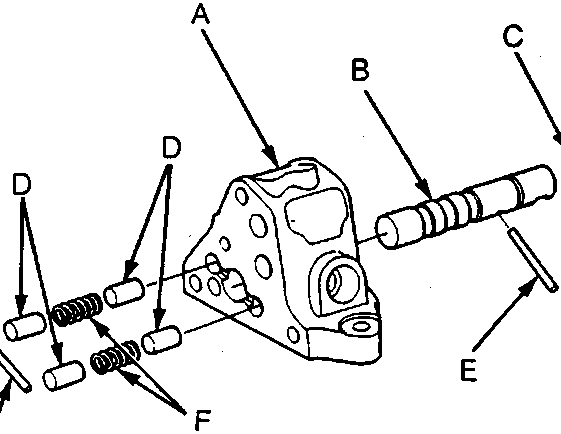

Exploded diagram of the valve body, 4-way valve, O-ring, plungers, roller, and return springs with callouts A through F

57M0179

AValve Body
B4-way Valve
CO-ring
DPlungers
ERoller
FReturn Springs
  1. Remove the rollers from the 4-way valve by pushing the valve out one side of the valve body and then the other.

Note: When removing the rollers, hold the plungers with your fingers to keep them from pipping out.

  1. Remove the plungers, return springs and 4-way valve from the valve body.
  2. Remove the 11 mm O-ring from the 4-way valve and discard.
