SteeringDrive and Driven Gears Removal · page 2 of 3

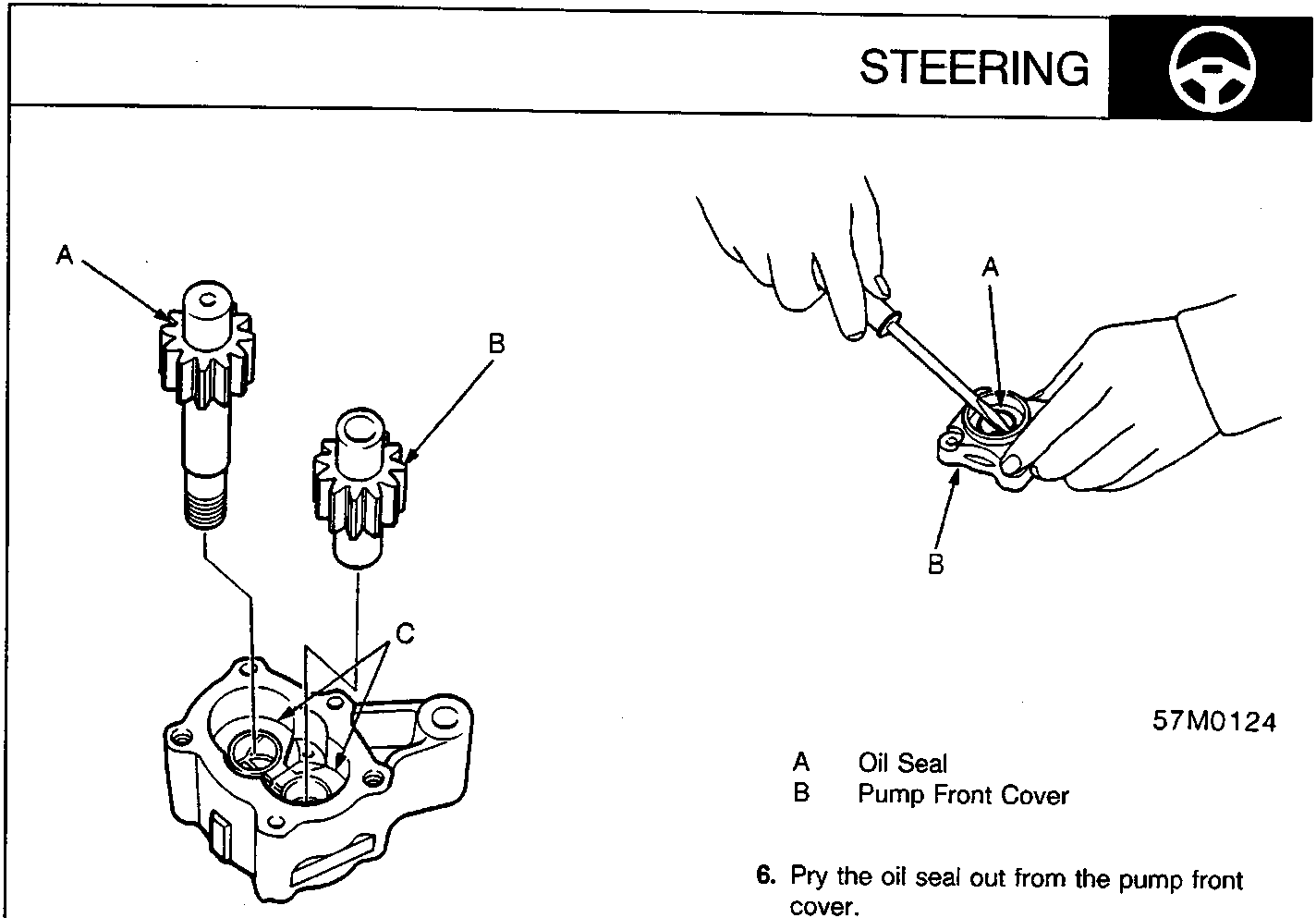

Diagram showing the disassembly of a steering pump, including drive gear, driven gear, plungers, oil seal, and pump front cover.
  1. 4. Remove the pump drive and driven gears from the pump housing.
  2. 5. Remove the plungers from the pump housing.
  3. 6. Pry the oil seal out from the pump front cover.
