Automatic gearbox - JF403EConverter oil seal

CONVERTER OIL SEAL

Service repair no - 44.17.11

Remove

  1. Remove gearbox and converter assembly. See this section.

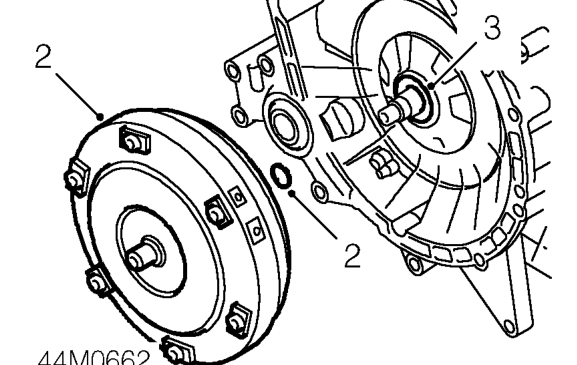

Converter oil seal – Remove gearbox and converter assembly. See this section.
  1. Remove converter from gearbox. Discard ’O’ ring from gearbox input shaft.
  2. Carefully remove converter oil seal from gearbox and discard.

CAUTION: When removing oil seal take care not to damage oil pump housing.

Refit

  1. Clean oil seal recess. Lubricate oil seal with clean transmission fluid.

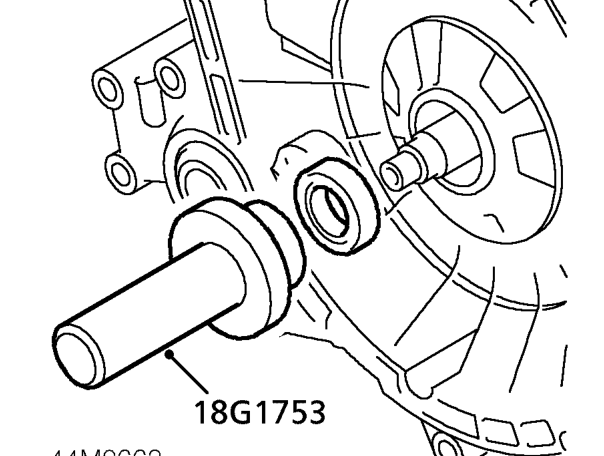

Converter oil seal – Clean oil seal recess. Lubricate oil seal with clean transmission fluid.
  1. Fit new converter oil seal using tool 18G 1753.
  2. Fit new ’O’ ring seal to gearbox input shaft.
  3. Fit converter to gearbox.

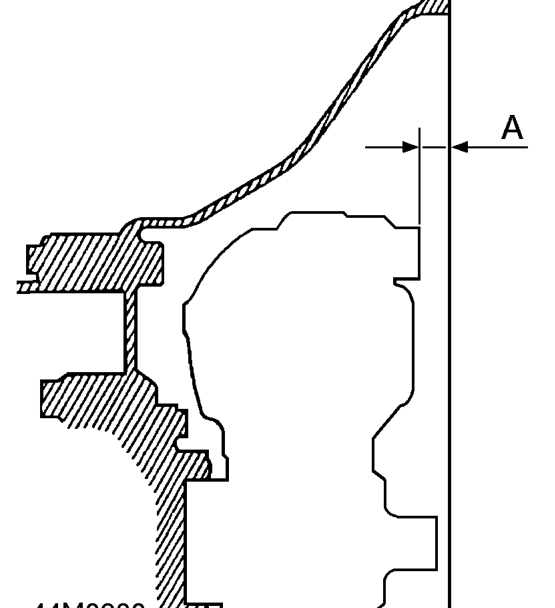

Converter oil seal – Fit converter to gearbox.
  1. Ensure converter is fully located in oil pump drive by checking depth A as illustraed. Depth A = 11.7 mm. Minimum.
  2. Refit gearbox and converter assembly. See this section.
