Rover 800 Workshop Manual (1996-1999)20 · Brakes
20 · Brakes

Brake master cylinder - KV6 (page 2 of 2)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
BrakesBrake master cylinder - KV6 · page 2 of 2

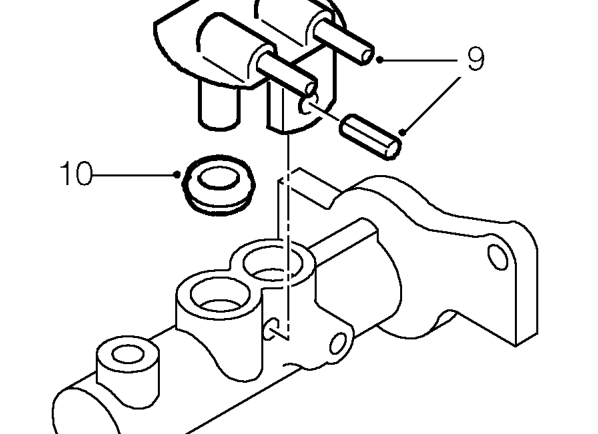

Diagram
  1. Drift out roll pin and remove adapter.
  2. Remove and discard 2 seals.

Refit

  1. Clean master cylinder and servo mating surfaces.
  2. Fit NEW seals to master cylinder adapter.
  3. Secure adapter to master cylinder with roll pin.

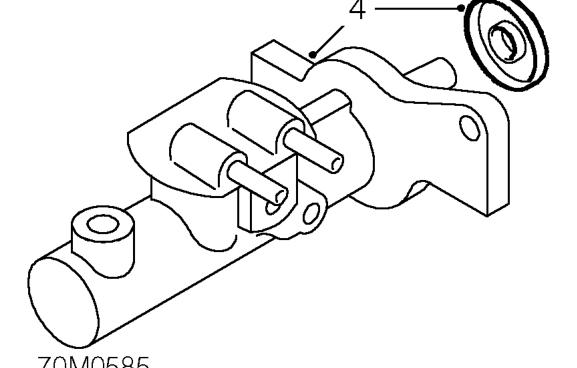

Secure adapter to master cylinder with roll pin.
  1. Ensure rod seal is correctly fitted to master cylinder.
  2. Align servo push rod and fit master cylinder to servo, tighten nuts to 27 Nm.
  3. Connect primary and secondary brake pipes, tighten unions to 19 Nm.
  4. Connect feed hoses to adapter.
  5. Bleed brake system. See Adjustments.
