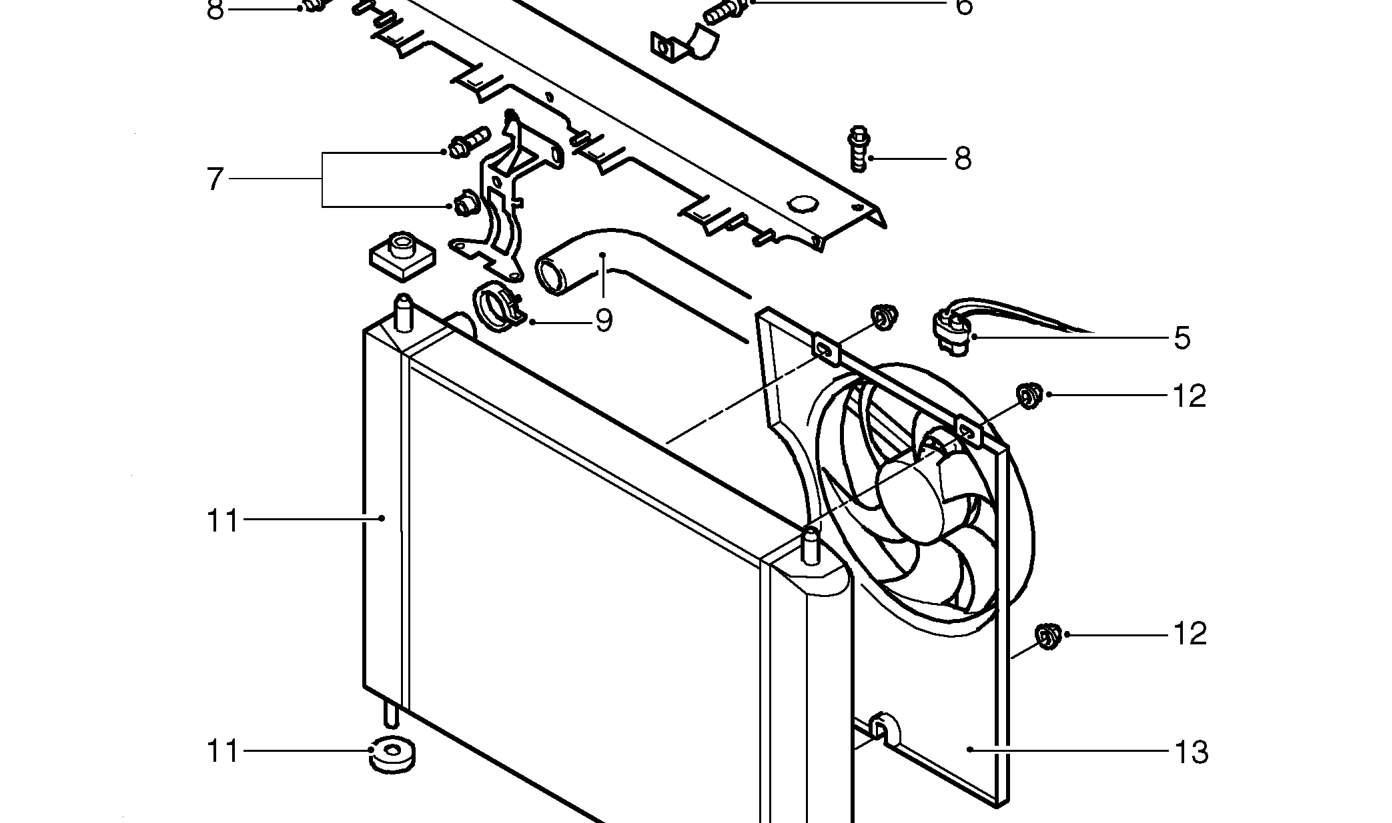

5. Disconnect multiplug from radiator cooling fan.
6. Remove screw and remove top hose support clip from bonnet support platform.
7. Remove screw and nut securing bonnet safety catch to bonnet support platform.
8. Remove 4 screws and move bonnet support platform aside.
9. Release clip and disconnect top hose from radiator.
10. Release radiator from 2 lower mountings.
11. Remove radiator from vehicle and remove 2 lower mounting rubbers. Do not carry out further dismantling if component is removed for access only.
12. Remove 3 nuts securing cooling fan housing to radiator.
13. Remove cooling fan housing .
14. Fit cooling fan housing to new radiator, fit nuts and tighten to 6 Nm.
