Rover 800 Workshop Manual (1996-1999)11 · Cooling system - KV6
11 · Engine

Coolant pump

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Coolant pump
Cooling system - KV6Coolant pump

COOLANT PUMP

Service repair no - 26.50.01

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See Adjustments.
  3. Remove camshaft timing belt. See ENGINE - ’KV6’, Repairs.

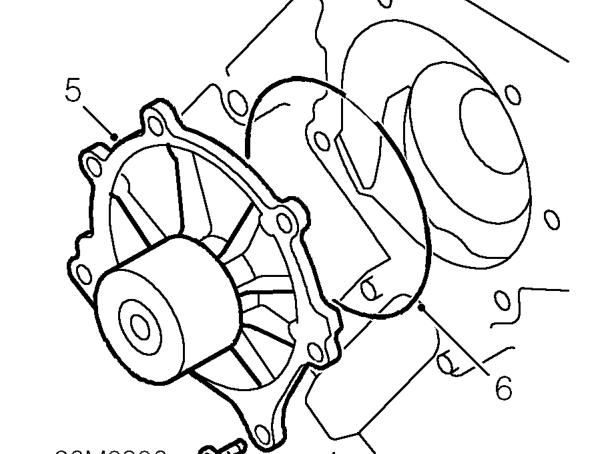

Coolant pump – Remove camshaft timing belt. See ENGINE - ’KV6’, Repairs.
  1. Remove and discard 7 bolts securing coolant pump to cylinder block.
  2. Release coolant pump from cylinder block and remove.
  3. Remove and discard ’O’ ring from coolant pump.

Refit

  1. Clean coolant pump and mating face of cylinder block.
  2. Lubricate new ’O’ ring with rubber grease and fit to coolant pump.
  3. Fit coolant pump to cylinder block.

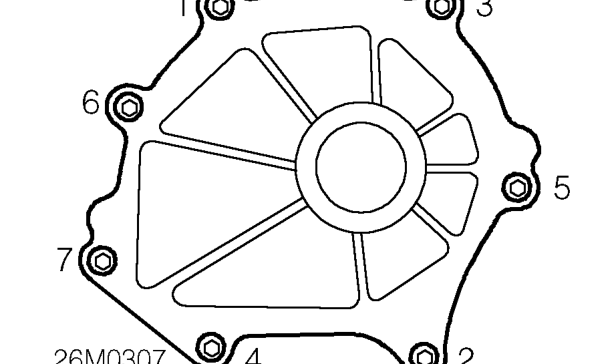

Coolant pump – Fit coolant pump to cylinder block.
  1. Fit NEW bolts and tighten progressively in sequence shown to 9 Nm.
  2. Fit camshaft timing belt. See ENGINE - ’KV6’, Repairs.
  3. Refill cooling system. See Adjustments.
  4. Connect battery earth lead.
