RADIATOR COOLING FAN AND MOTOR

Service repair no - 26.25.23

Remove

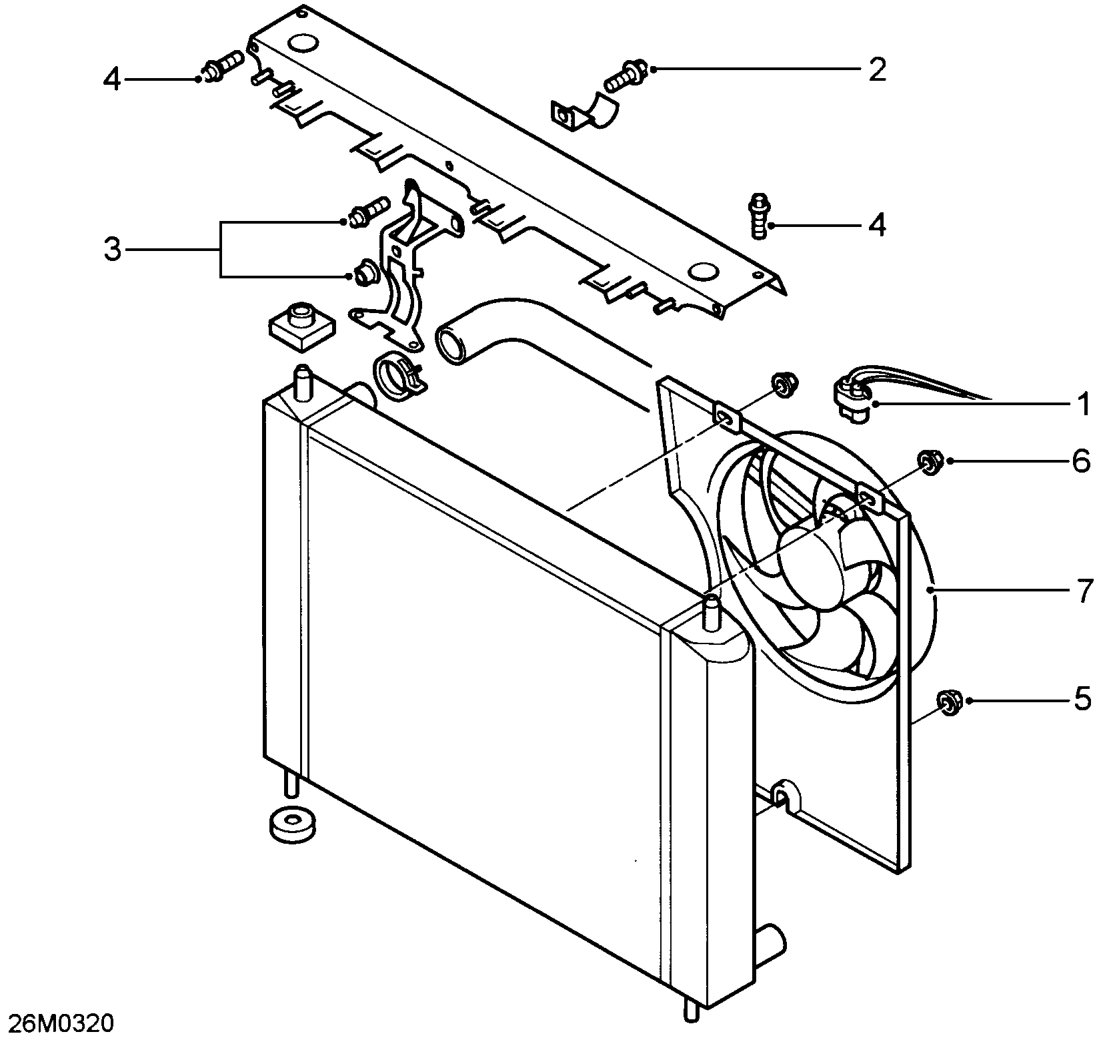

Radiator cooling fan and motor – Service repair no - 26.25.23
  1. Disconnect multiplug from radiator cooling fan.
  2. Remove screw and remove top hose support clip from bonnet support platform.
  3. Remove screw and nut securing bonnet safety catch to bonnet support platform.
  4. Remove 4 screws and move bonnet support platform aside.
  5. Remove nut securing bottom of cooling fan housing to radiator.
  6. Remove 2 nuts securing top of cooling fan housing to radiator.
  7. Release cooling fan housing from studs on radiator and remove.
