FRONT PIPE - ’K16 WITH VVC’

Service repair no - 30.10.09

Remove

  1. Raise vehicle on a 4 post ramp.
Front pipe - ’k16 with vvc’ – Raise vehicle on a 4 post ramp.
  1. Remove 3 flange nuts securing front pipe to catalytic converter.
  2. Release mounting rubber from pipe bracket.
Front pipe - ’k16 with vvc’ – Release mounting rubber from pipe bracket.

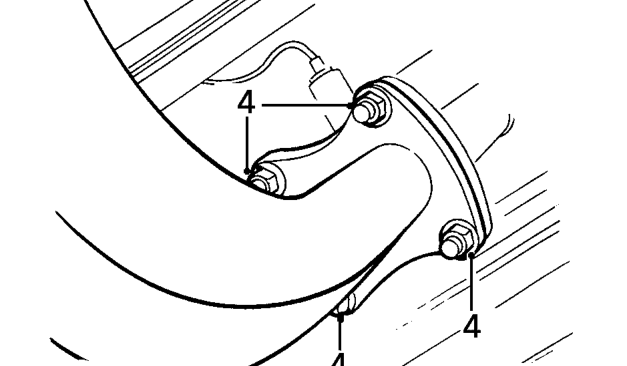

  1. Remove 4 flange nuts securing front pipe to manifold.
  2. Release front pipe from manifold and remove from catalytic converter.
  3. Remove flange gaskets.

Refit

  1. Clean pipe flanges.
  2. Fit new gasket to catalytic converter flange.
  3. Fit front pipe to catalytic converter, fit flange nuts but DO NOT tighten.
  4. Fit new gasket to manifold flange.
  5. Raise front pipe and engage flange.
  6. Fit manifold to front pipe flange nuts and tighten to 50 Nm.
  7. Tighten flange nuts securing front pipe to catalytic converter to 50 Nm.
  8. Connect rubber mounting to front pipe bracket.
  9. Lower vehicle.
