INTERMEDIATE PIPE - ’K16’

Service repair no - 30.10.11

Remove

  1. Raise vehicle on 4 post ramp.
Intermediate pipe - ’k16’ – Raise vehicle on 4 post ramp.

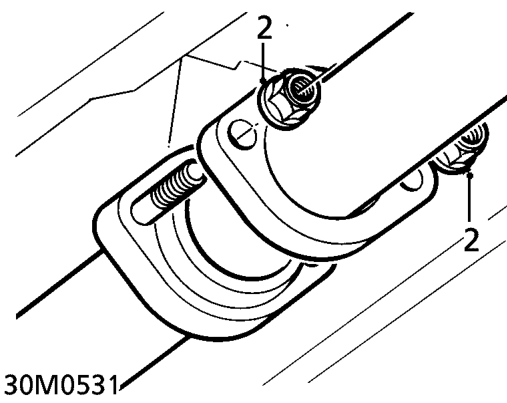

  1. Remove 2 nuts securing tail pipe to intermediate pipe.
Intermediate pipe - ’k16’ – Remove 2 nuts securing tail pipe to intermediate pipe.

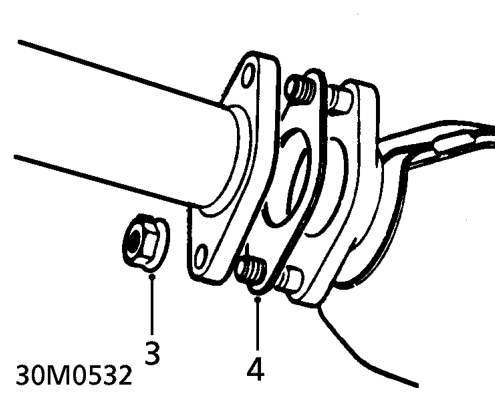

  1. Remove 2 nuts securing intermediate pipe to catalytic converter.
  2. Release intermediate pipe from catalytic converter. Remove and discard gasket
Intermediate pipe - ’k16’ – Release intermediate pipe from catalytic converter. Remove and discard gasket

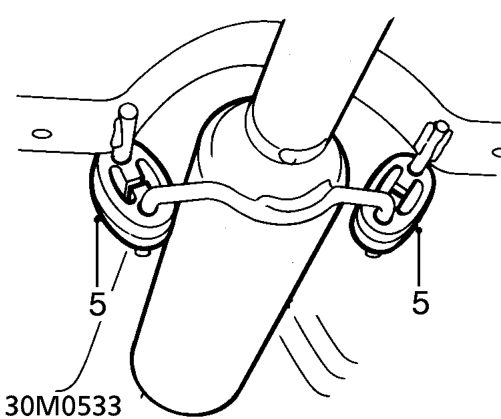

  1. Release 2 rubber mountings securing intermediate pipe to body.
  2. Release and remove intermediate pipe. Remove and discard gasket from tail pipe flange end of intermediate pipe.

Refit

  1. Clean mating faces of intermediate pipe, catalytic converter and tail pipe.
  2. Fit new gaskets to tail pipe flange end of intermediate pipe and catalytic converter flange.
  3. Fit intermediate pipe to tail pipe, align and connect to catalytic converter flange.
  4. Fit nuts securing intermediate pipe to catalytic converter and tighten to 34 Nm.
  5. Fit nuts securing intermediate pipe to tail pipe and tighten to 45 Nm.
  6. Secure intermediate pipe mounting rubbers to body.
  7. Lower vehicle.
