Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement11 · Manifold & exhaust systems
11 · Engine

Tail pipe

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Tail pipe
Manifold & exhaust systemsTail pipe

TAIL PIPE

Service repair no - 30.10.22

Remove

  1. Raise vehicle on 4 post ramp.

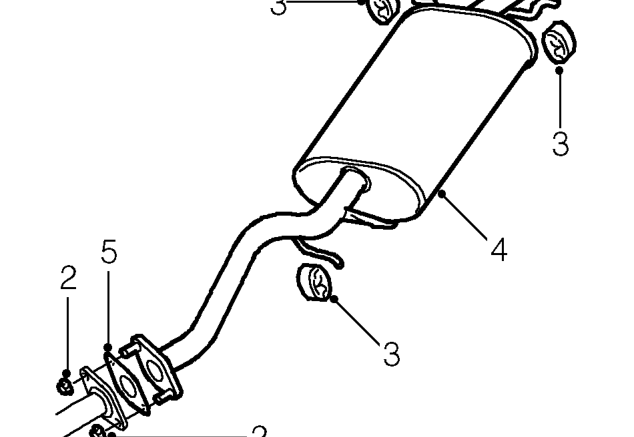

Tail pipe – Raise vehicle on 4 post ramp.
  1. Remove 2 nuts securing intermediate pipe to tail pipe.
  2. Release 3 rubber mountings securing tail pipe to body.
  3. Remove tail pipe.
  4. Remove and discard gasket.

Refit

  1. Clean intermediate pipe and tail pipe mating faces.
  2. Fit new gasket to intermediate pipe flange studs.
  3. Fit tail pipe and secure rubber mountings to body.
  4. Fit nuts to flange and tighten to 45 Nm.
  5. Lower vehicle.

FRONT PIPE TO MANIFOLD GASKET

Service repair no - 30.10.26

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

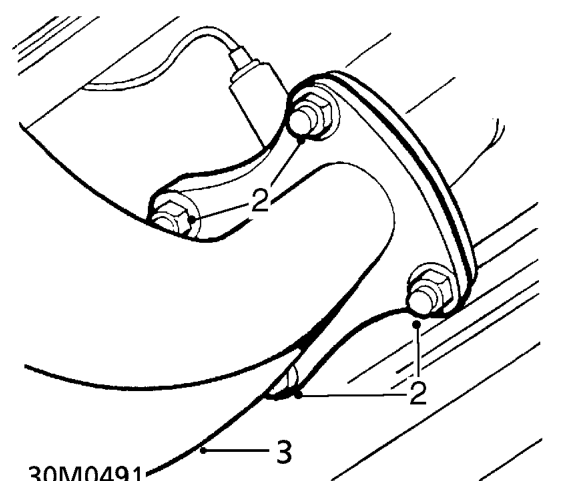

Front pipe to manifold gasket – Raise front of vehicle.
  1. Remove 4 flange nuts securing front pipe to manifold.
  2. Release front pipe from manifold.
  3. Remove gasket from manifold flange.

Refit

  1. Clean manifold and front pipe flanges.
  2. Fit new gasket to manifold flange.
  3. Position front pipe to manifold, fit and tighten bolts to 50 Nm.
  4. Remove stand(s) and lower vehicle.
