Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement11 · Manifold & exhaust systems
11 · Engine

Inlet manifold gasket - ’K16’

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Inlet manifold gasket - ’K16’
Manifold & exhaust systemsInlet manifold gasket - ’K16’ · page 1 of 4

#sa=22.2.96>

INLET MANIFOLD GASKET - ’K16’

Service repair no - 30.15.08

Remove

  1. Disconnect battery earth lead.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.
Inlet manifold gasket - ’k16’ – Drain cooling system. See COOLING SYSTEM, Adjustments.

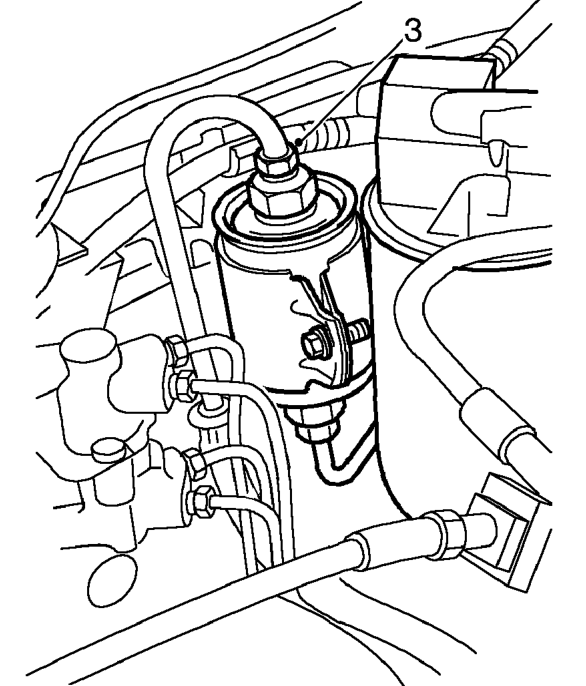

  1. Position absorbent cloth around fuel filter outlet union. Slacken union to relieve fuel pressure. Retighten union to 30 Nm.

CAUTION: To prevent damage to fuel system pipes and components, use two spanners when loosening or tightening unions.
