Inlet manifold gasket - ’K16’ (page 2 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Manifold & exhaust systemsInlet manifold gasket - ’K16’ · page 2 of 4

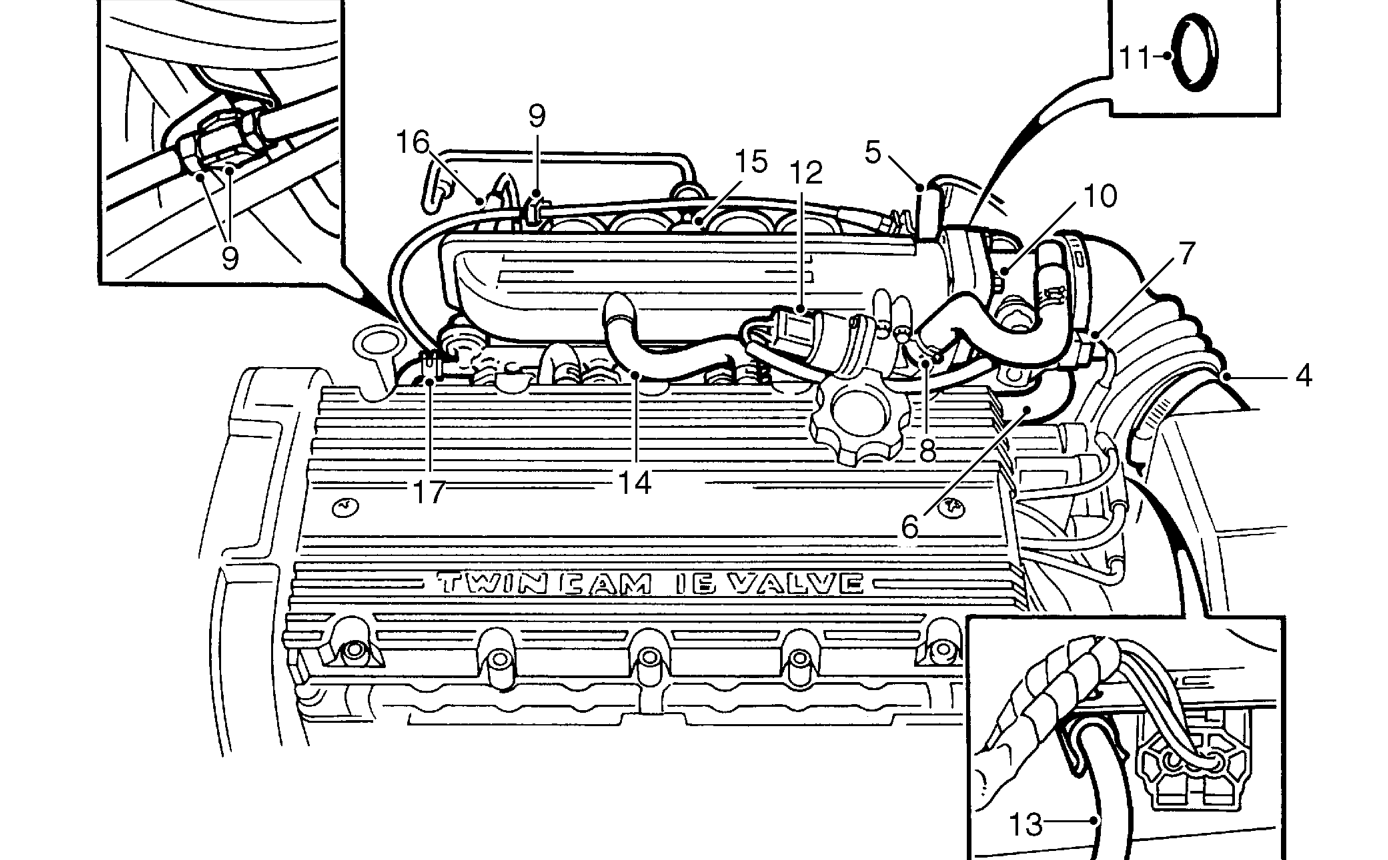

Diagram
  1. Remove clip and release air intake hose from air cleaner.
  2. Release clip and purge hose from inlet manifold.
  3. Release clip and breather hose from throttle body.
  4. Disconnect multiplug from TP sensor.
  5. Release clip and hose from IACV.
  6. Release throttle cable from clip on manifold.
  7. Remove 4 bolts securing throttle body to inlet manifold, remove throttle body and place aside.
  8. Remove and discard ’O’ ring.
  9. Disconnect multiplug from IACV.
  10. Release distributor h.t. lead from manifold bracket.
  11. Release breather hose from inlet manifold.
  12. Depress plastic collar and release brake servo hose from inlet manifold.
  13. Release ECM vacuum hose from manifold.
  14. Release clip and fuel return hose from fuel rail.

CAUTION: Plug the connections.
