Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement11 · Manifold & exhaust systems
11 · Engine

Exhaust manifold gasket - models with air conditioning

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Exhaust manifold gasket - models with air conditioning
Manifold & exhaust systemsExhaust manifold gasket - models with air conditioning · page 1 of 2

Refit

  1. Clean manifold mating faces.
  2. Fit new gasket to manifold studs.

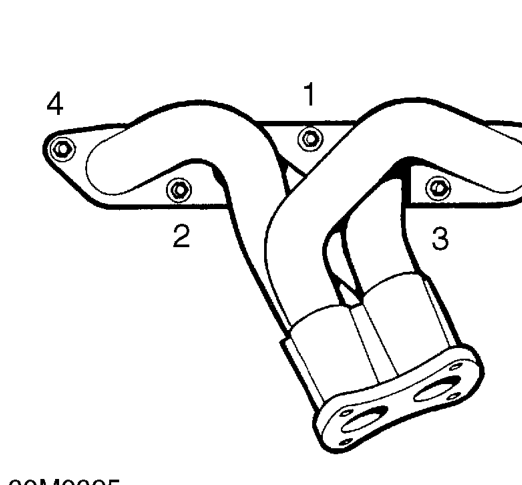

Fit new gasket to manifold studs.
  1. Fit manifold on studs and tighten nuts in the sequence illustrated to 45 Nm.
  2. Connect heated oxygen sensor multiplug to harness and secure to bracket.
  3. Fit front pipe to manifold gasket, See this section.

EXHAUST MANIFOLD GASKET - MODELS WITH AIR CONDITIONING

Service repair no - 30.15.12.20

Remove

  1. Remove alternator. See ELECTRICAL, Repairs.
  2. Remove front pipe to manifold gasket. See this section.

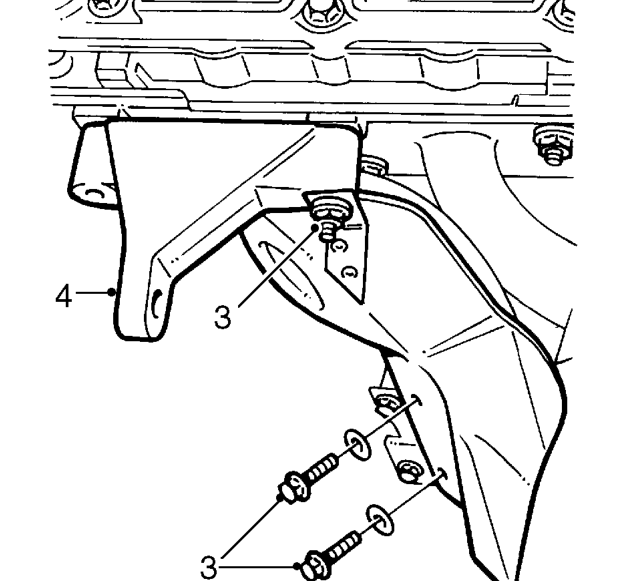

Exhaust manifold gasket - models with air conditioning – Remove front pipe to manifold gasket. See this section.
  1. Remove nut and 2 bolts securing alternator heat shield and remove heat shield.
  2. Remove alternator top mounting bracket.
