INLET MANIFOLD CHAMBER GASKET - ’K16 WITH VVC’

Service repair no - 30.15.37

Remove

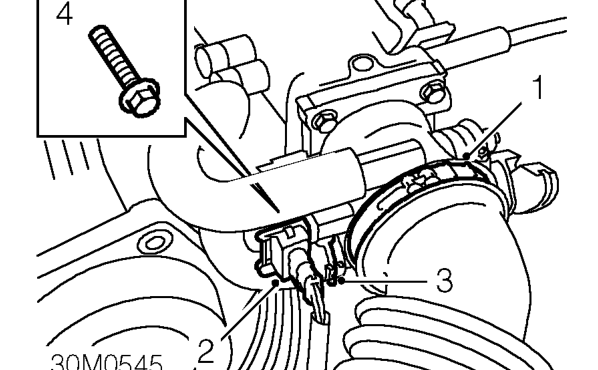

Inlet manifold chamber gasket - ’k16 with vvc’ – Service repair no - 30.15.37
  1. Release clip and disconnect air intake hose from throttle housing.
  2. Disconnect multiplug from TP sensor.
  3. Release clip and disconnect breather hose from throttle housing.
  4. Remove bolt securing injector harness multiplug bracket to throttle housing and position aside.

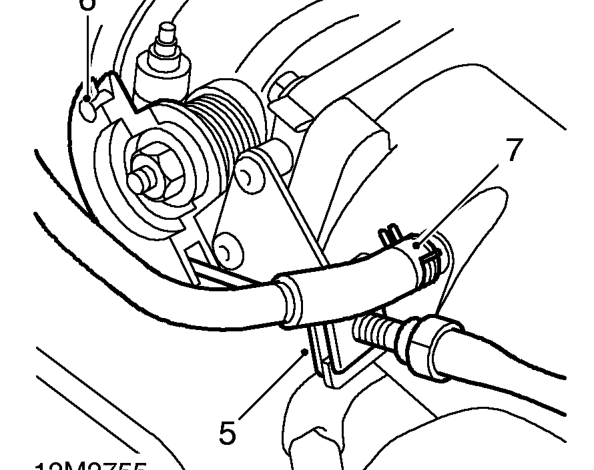

Inlet manifold chamber gasket - ’k16 with vvc’ – Remove bolt securing injector harness multiplug bracket to throttle housing and position a
  1. Release throttle cable adjusting nut from abutment bracket.
  2. Disconnect throttle cable from throttle cam.
  3. Release clip and disconnect purge hose from manifold chamber.

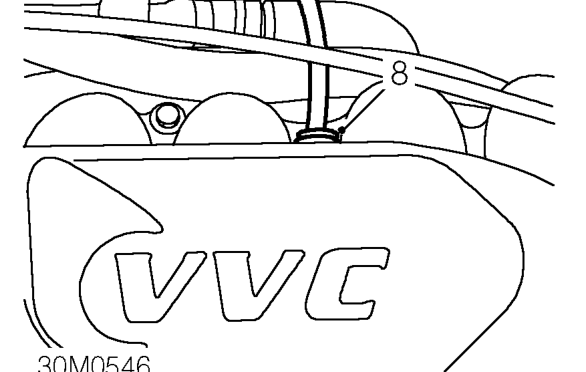

Inlet manifold chamber gasket - ’k16 with vvc’ – Release clip and disconnect purge hose from manifold chamber.
  1. Depress collar and release brake servo vacuum hose from manifold.
