INLET MANIFOLD GASKET - ’K16 WITH VVC’

Service repair no - 30.15.08

Remove

  1. Remove inlet manifold chamber. See this section.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.
  3. Position cloth to catch fuel spillage.
Inlet manifold gasket - ’k16 with vvc’ – Position cloth to catch fuel spillage.

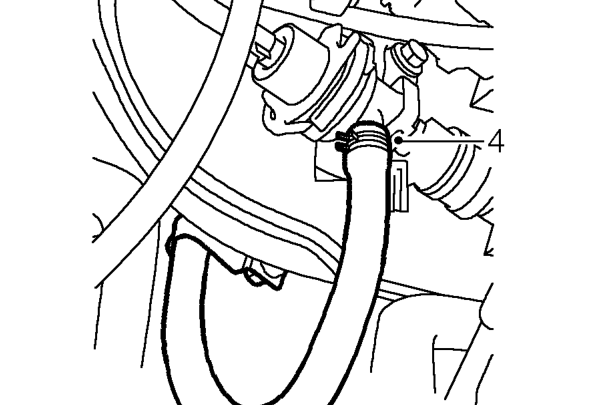

  1. Release clip and disconnect fuel return hose from fuel rail.
Inlet manifold gasket - ’k16 with vvc’ – Release clip and disconnect fuel return hose from fuel rail.

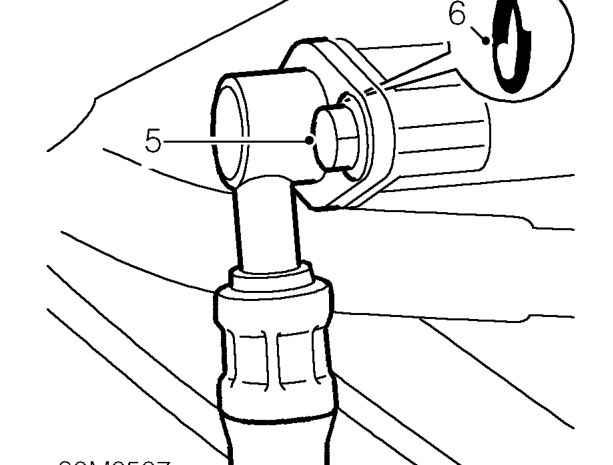

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe and remove and discard ’O’ ring.

CAUTION: Plug the connections.

  1. Position drain tray to collect coolant spillage.
