Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement11 · Manifold & exhaust systems
11 · Engine

Exhaust manifold gasket - models with air conditioning (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Manifold & exhaust systemsExhaust manifold gasket - models with air conditioning · page 2 of 2
Diagram

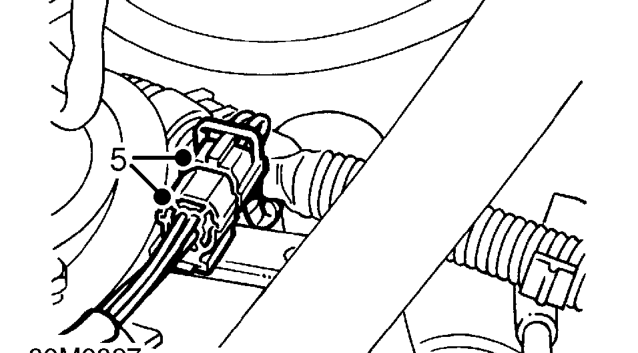

  1. Release HO2S multiplug from bracket.
  2. Disconnect HO2S multiplug from harness.
Disconnect HO2S multiplug from harness.

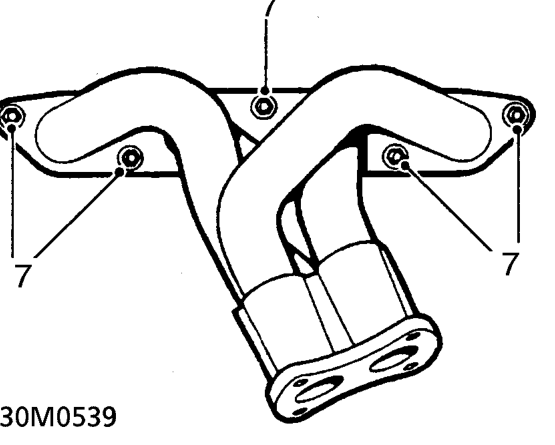

  1. Remove 5 nuts securing exhaust manifold to cylinder head.
  2. Remove exhaust manifold.
  3. Remove and discard exhaust manifold gasket.

Refit

  1. Clean manifold mating faces.
  2. Fit new gasket to manifold studs.
Fit new gasket to manifold studs.

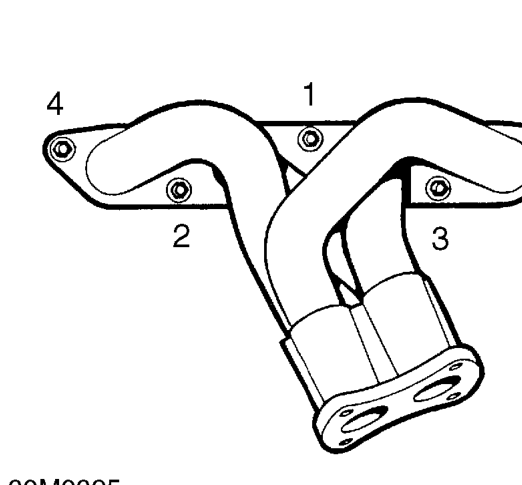

  1. Fit manifold on studs and tighten nuts in the sequence illustrated to 45 Nm.
  2. Connect HO2S multiplug to harness and secure to bracket.
  3. Fit alternator top mounting bracket and alternator heat shield.
  4. Fit nut and bolts. Tighten heatshield bolts to 10 Nm.
  5. Fit front pipe to manifold gasket. See this section.
  6. Fit alternator. See ELECTRICAL, Repairs.
