Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement11 · Manifold & exhaust systems
11 · Engine

Inlet manifold gasket - ’K16’ (page 3 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
Manifold & exhaust systemsInlet manifold gasket - ’K16’ · page 3 of 4
Diagram

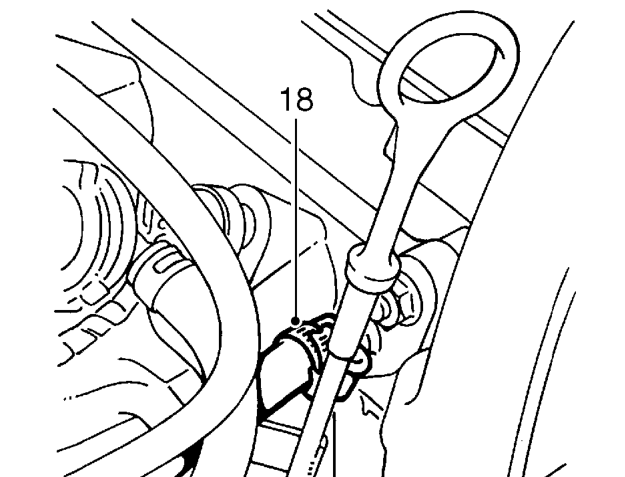

  1. Loosen clip and release coolant hose from inlet manifold.
Loosen clip and release coolant hose from inlet manifold.

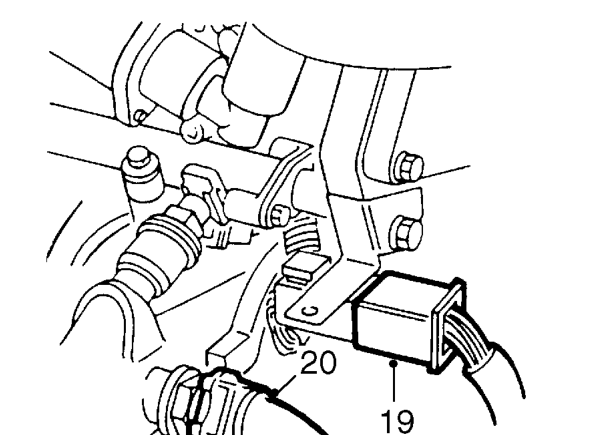

  1. Release injector harness multiplug from bracket and disconnect multiplug.

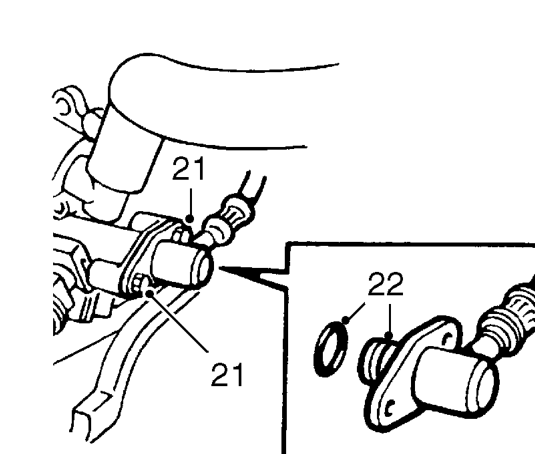

  2. Disconnect multiplug from IAT sensor.
Disconnect multiplug from IAT sensor.
  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail, remove and discard ’O’ ring.

CAUTION: Plug the connections.

  1. Working from the centre outwards, progressively slacken then remove 3 nuts and 4 bolts securing inlet manifold to cylinder head.
  2. Remove inlet manifold.
Remove inlet manifold.

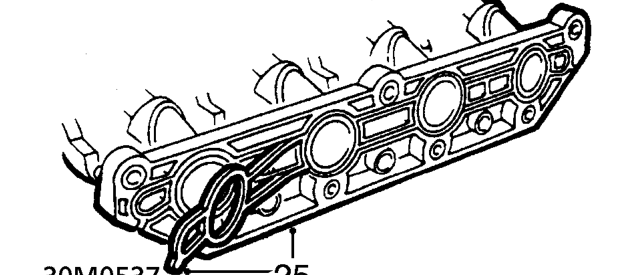

  1. Remove and discard manifold gasket.
