70 BodyworkPreliminary procedures · page 2 of 2

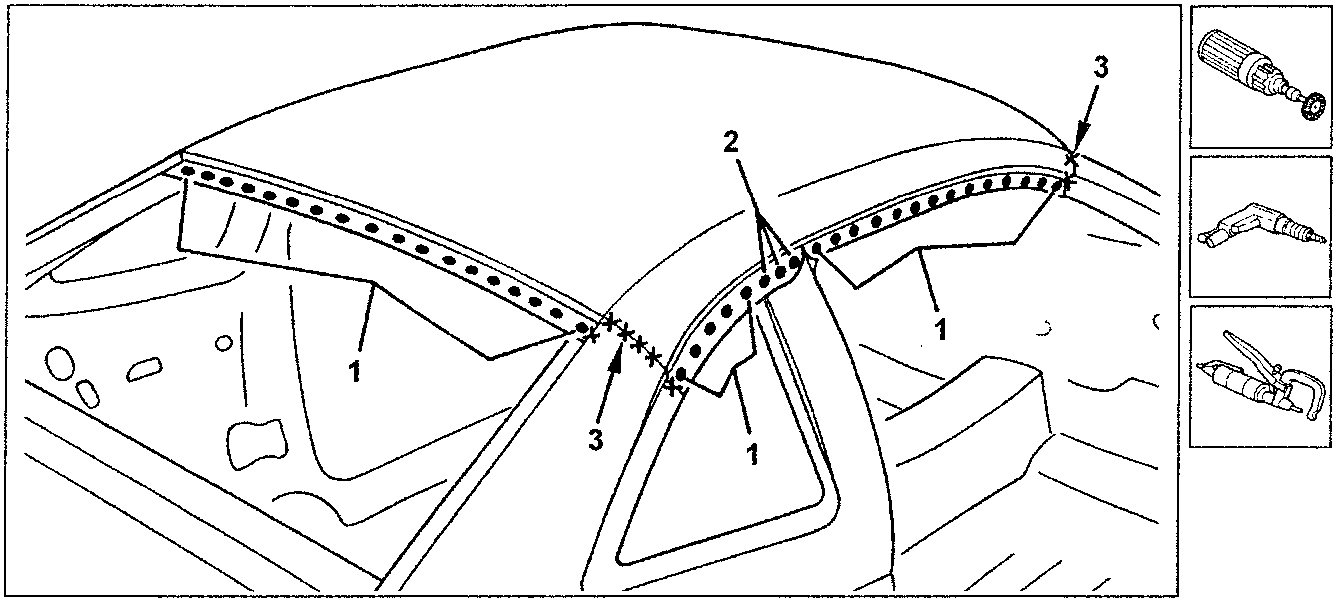

– Using a rotary brush clean the area to be de-welded to reveal the welding spots.
- Remove the welding spots using a de-welder.
- Remove the welding spots using a drill.
- Remove the braze welding in the area illustrated.

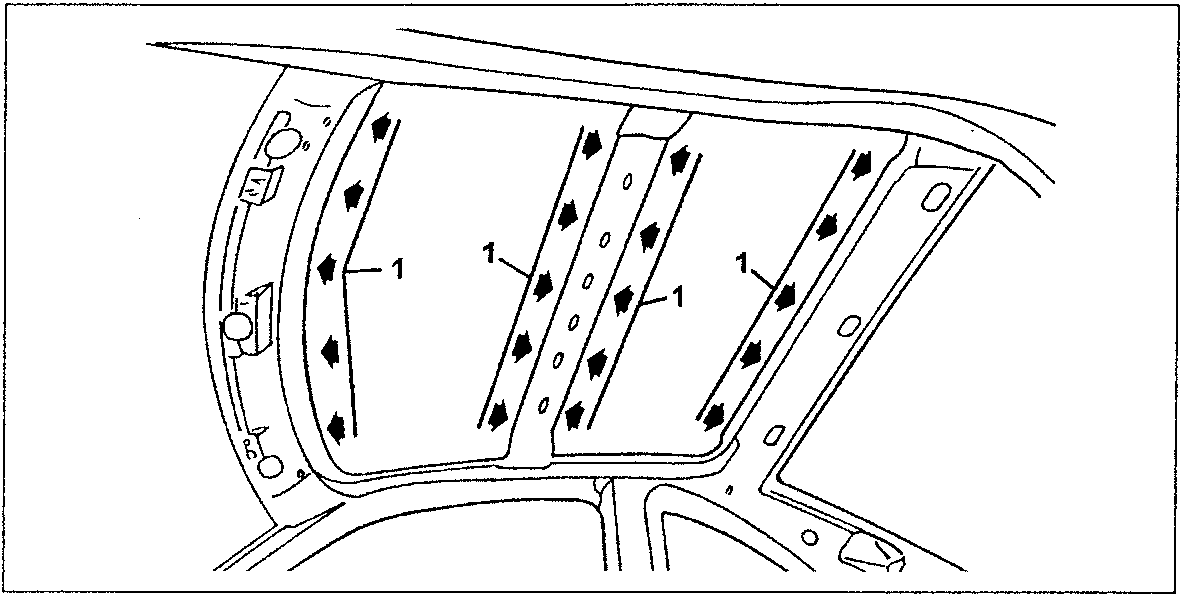

- Remove the roof cutting the structural sealant along the areas illustrated.
