Vehicle Features

Vehicle Features

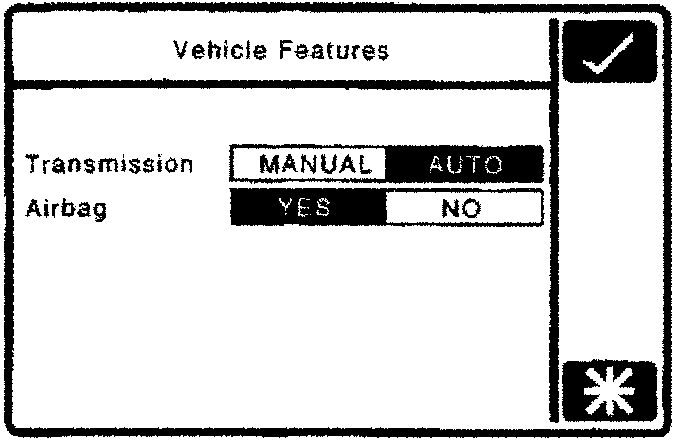

The vehicle features screen illustrated below is used to identify the vehicle particulars and the model year.

If Airbag - NO is selected, the vehicle is assumed to be 95 model year.

If Airbag - YES is selected, 97 model year is assumed. On completing entries in the vehicle features screen, the appropriate vehicle area screen will be displayed.

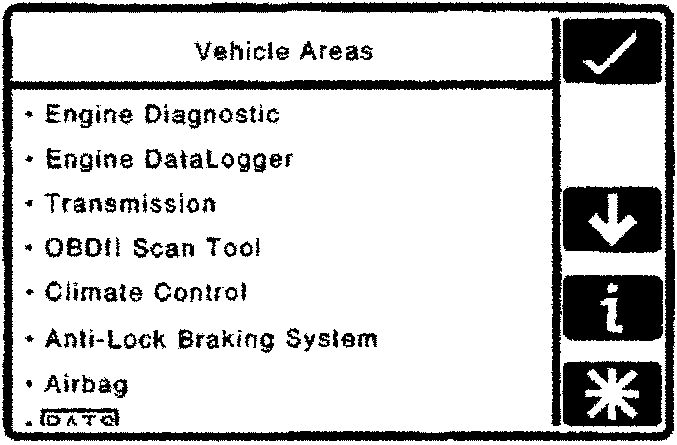

Vehicle Area

This screen allows selection of the vehicle system to be accessed. Only 4 systems may be accessed on 95 model year vehicles, on 97 model year cars, 8 systems may be accessed as follows:

95 model year software

• Zytek Engine Management
• GM 4L80-E Transmission Controller
• Teves Mk II Anti-Lock Braking System
• Valeo Air Conditioning

97 model year software

• EEC-V Engine Management
• GM 4L80-E Transmission Controller with OBDII
• Teves Mk IV Anti-Lock Braking System
• Valeo Air Conditioning
• PATS Engine Immobiliser
• Megamoss security system
• FMC Airbag system
• Autoliv seatbelt pretensioner
