Datalogger Example

Datalogger Example

A customer reported intermittent illumination of the anti-Lock Brakes (ABS) warning lamp.

The ABS control module was interrogated, producing fault code 33 (95 MY), right-rear wheel speed sensor.

The PDU was used to check the wheel speed sensor output using the ABS warning lamp as a trigger.

The PDU was setup to the vehicle’s configurations and Datalogger was accessed.

Datalogger automatically defaulted to the waveform screen.

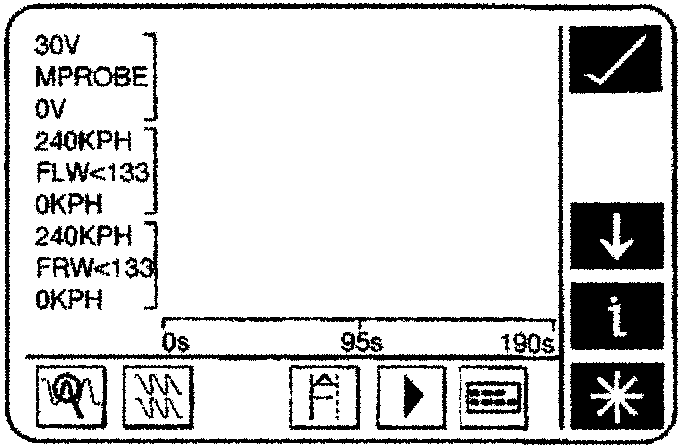

Datalogger Waveform Screen

The main menu icon was selected to access the main menu screen.

The main menu screen is the main control screen for access to DataLogger’s subsystems.

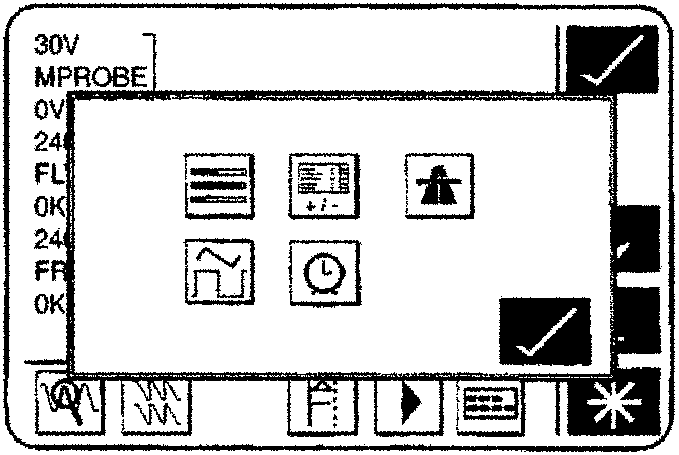

Datalogger Main Menu

The customisation icon was selected, and the selection was confirmed using the ‘tick’ icon.

The parameter customisation screen was then displayed.

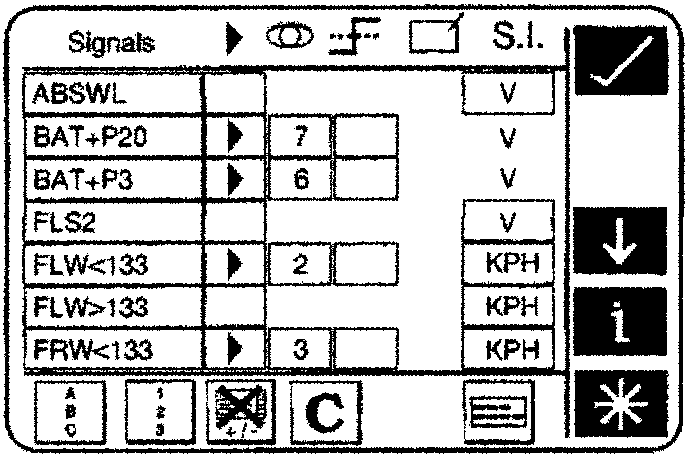

Parameter Customisation Screen

All pre-defined parameters were cancelled using the ‘C’ icon, the screen was now similar to that below.

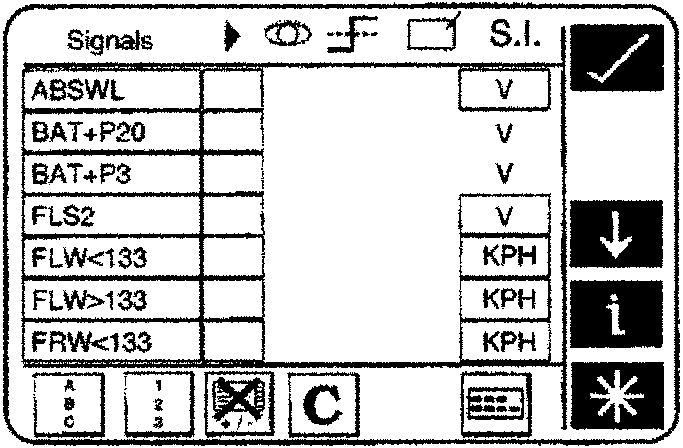

Fig. 35 Parameter Setup

The rectangle below the play icon next to ‘ABSWL’ (Anti-Lock Brakes System Warning Lamp) was selected to be recorded.

The rectangle below the ‘eye’ icon in the ‘ABSWL’ row was selected to be recorded.

The screen was scrolled down until ‘RLW<133’ was displayed.

The rectangle below the play icon in row ‘RLW<133’ was selected.

The rectangle below the eye icon in row ‘RLW<133’ was selected.
